How to morph a mesh in-game

- Tools needed:

• 3ds max 2010 and above + KAM's script
• 3ds max script : http://www.mediafire.com/download/at1dk6th5zw3hvh/ExportVertsId.mcr
• Sanny builder + Cleo

- Step 1:
Import your model , I chose to import the Admiral model , select the part you want to modify if your model has multiple parts , I chose the chassis, [Right-click] on it and click on [Hide unselected] , then expand the + Editable mesh and go to - Vertex mode and select the vertices which you want to apply your modification on:

​

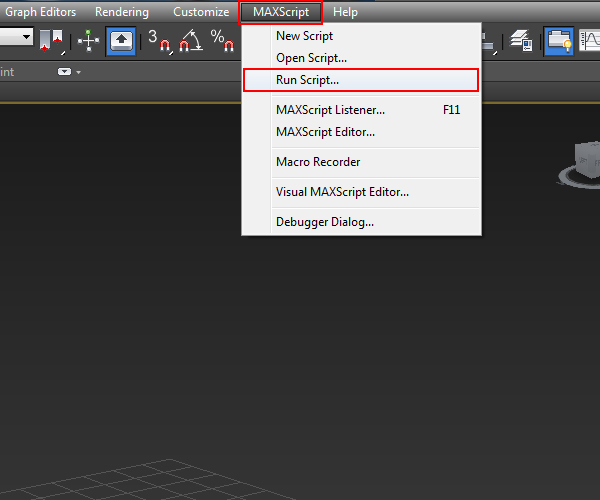

Run the script that you downloaded:

​

Click on export , make sure that the vertices are still selected :
​

​

- Step 2:

You should obtain the vertices ids like shown below :
​

​

Make a new ini file out of it like this :
​

​

Save your ini file to the cleo folder

- Step 3:
Use this script to manipulate your vertices :

const  chassis = 0x64C              wheel_rf_dummy = 0x650             wheel_rm_dummy = 0x654             wheel_rb_dummy = 0x658             wheel_lf_dummy = 0x65C             wheel_lm_dummy = 0x660             wheel_lb_dummy = 0x664            door_rf_dummy = 0x668             door_rr_dummy = 0x66C              door_lf_dummy = 0x670             door_lr_dummy = 0x674             bump_front_dummy = 0x678           bump_rear_dummy = 0x67C           wing_rf_dummy = 0x680                wing_lf_dummy = 0x684                bonnet_dummy = 0x688              boot_dummy = 0x68C                windscreen_dummy = 0x690           exhaust_ok = 0x694                misc_a = 0x698                    misc_b = 0x69C                    misc_c = 0x6A0                     misc_d = 0x6A4                    misc_e = 0x6A8 end0AB1: call_scm_func @VehNodeGetStructure params 2 car [email protected] node chassis ret: RwFrame [email protected] RpAtomic [email protected] RpClump [email protected] RpGeometry [email protected] RpMaterial [email protected] [email protected] = 1 // Beginning IDrepeatwait 00AD3: [email protected] = format "%d" [email protected]: [email protected] = get_int_from_ini_file "cleo\data.ini" section "chas_top" key [email protected]: call_scm_func @MorphGeometryPoints params 6 RpGeometry [email protected] starting_V3d_ID [email protected] num_Points 1 morph 0.0 0.0 0.4 [email protected] += 1until [email protected] == 185 // Ending ID + 1end_thread:MorphGeometryPoints   0AA7: RwMatrixCreate 0x7F2A50 num_params 0 pop 0 RwMatrix [email protected]//0AA5: RwMatrixScale 0x7F22C0 num_params 3 pop 3 combine 1 scaleoffset [email protected] RwMatrix [email protected]//0AA5: RwMatrixRotate 0x7F1FD0 num_params 4 pop 4 combine 1 rot_angle 90.0 rot_axis [email protected] RwMatrix [email protected]: RwMatrixTranslate 0x7F2450 num_params 3 pop 3 combine 1 pos [email protected] RwMatrix [email protected]@ += 920A8D: [email protected] = read_memory [email protected] size 4 virtual_protect 0 //[email protected] -= [email protected] += 28 // RwV3d 1 - RwV3d in [email protected] -= [email protected] = 12006A: [email protected] *= [email protected]  005A: [email protected] += [email protected]   0085: [email protected] = [email protected] // RwV3d out 0AA5: RpGeometryLock 0x74C7D0 num_params 2 pop 2 Lockmode 0x02 RpGeometry [email protected] //rpGEOMETRYLOCKPOLYGONS = 0x01 ;rpGEOMETRYLOCKVERTICES = 0x02 ;rpGEOMETRYLOCKNORMALS = 0x04 ;rpGEOMETRYLOCKPRELIGHT = 0x08 ;rpGEOMETRYLOCKTEXCOORDS = 0x10 ;rpGEOMETRYLOCKTEXCOORDS1 = 0x10 ;rpGEOMETRYLOCKTEXCOORDS2 = 0x20 ;rpGEOMETRYLOCKTEXCOORDS3 = 0x40 ;rpGEOMETRYLOCKTEXCOORDS4 = 0x80 ;rpGEOMETRYLOCKTEXCOORDS5 = 0x0100 ;rpGEOMETRYLOCKTEXCOORDS6 = 0x0200 ;rpGEOMETRYLOCKTEXCOORDS7 = 0x0400 ;rpGEOMETRYLOCKTEXCOORDS8 = 0x0800 ;rpGEOMETRYLOCKTEXCOORDSALL = 0x0ff0 ;rpGEOMETRYLOCKALL = 0x0fff 0AA5: RwV3dTransformPoints 0x7EDD90 num_params 4 pop 4 RwMatrix [email protected] numPoints [email protected] V3d_pointsIn [email protected] V3d_pointsOut [email protected]: RpGeometryUnlock 0x74C800 num_params 1 pop 1 RpGeometry [email protected] 0AB2: ret 0:VehNodeGetStructure 0A97: [email protected] = car [email protected] struct005A: [email protected] += [email protected]  0A8D: [email protected] = read_memory [email protected] size 4 virtual_protect 00AB1: call_scm_func @FrameGetAtomic 1 RwFrame [email protected] ret: RpAtomic [email protected]: call_scm_func @AtomicGetClump 1 RpAtomic [email protected] ret: RpClump [email protected]: call_scm_func @AtomicGetGeometry 1 RpAtomic [email protected] ret: RpGeometry [email protected]: call_scm_func @GeometryGetMaterial 1 RpGeometry [email protected] ret: RpMaterial [email protected]: ret 5 [email protected] [email protected] [email protected] [email protected] [email protected]:GeometryGetMaterial0AA7: call 0x74c760 num_params 2 pop 2 RpTriangle [email protected] RpGeometry [email protected] RpMaterial [email protected] 0AB2: ret 1 [email protected]:[email protected] += 0x180A8D: [email protected] = read_memory [email protected] size 4 virtual_protect 00AB2: ret 1 [email protected]:[email protected] += 0x3C0A8D: [email protected] = read_memory [email protected] size 4 virtual_protect 00AB2: ret 1 [email protected]:FrameGetAtomic0AA7: call_function 0x7348C0 num_params 1 pop 1 RwFrame [email protected] RpAtomic [email protected] 0AB2: ret 1 [email protected]:[email protected] += 0x980A8D: [email protected] = read_memory [email protected] size 4 virtual_protect 00AB2: ret 1 [email protected]:[email protected] += 0x9C0A8D: [email protected] = read_memory [email protected] size 4 virtual_protect 00AB2: ret 1 [email protected]:[email protected] += 0xA00A8D: [email protected] = read_memory [email protected] size 4 virtual_protect 00AB2: ret 1 [email protected]

- Results:




You can modify any part you want:

Edited April 11, 2015 by Shmoopy

[DK22Pac 2,479]

look to RpMorph plugin in rwsdk.

Also, learn how to work with file read/write operations. Don't use INI for such tasks.

Edited April 11, 2015 by DK22Pac

[Shmoopy 191]

look to RpMorph plugin in rwsdk.

Also, learn how to work with file read/write operations. Don't use INI for such tasks.



RpMorph is definitely implemented in Gta SA ...

Oh , and I prefer to work with a 3 lines code for reading data rather than a sh*thole of 0A9D: readfile [email protected] size 1 to [email protected]

Edited April 11, 2015 by Shmoopy

[DJThanos 298]

Bump, but does it work in VC and 3ds max 2009?
