This topic will contain the most up-to-date list of opcodes in the Stories games. Almost all the opcodes in the Stories games are a bit different than the III-trilogy, mostly shifted but with many deletions and additions. I can only find two references to Stories opcodes. Sanny Builder has a list of LCS and VCS opcodes but they are terribly out-of-date. Many of the recently-discovered opcodes for the III-trilogy aren't in the list. Jon C's website also has a list of LCS opcodes and includes VC/SA analogous opcodes. Right now I am working on documenting ALL available opcodes for LCS like what I had done for III and VC. I want to make the most complete and up-to-date list of opcodes for the Stories games. Testing them will be much harder for me because I don't know any program that compiles for LCS and I don't know how to create one myself.



In this topic, there is a table of what I had typed up. Any opcodes that are italicized means that it is at least tested in-game by me. The rest is an educated guess based on the previous opcode list. Eventually when this list gets very large, I will post the list at GTAModding, so please hold out on creating a page for this before I'm done.





Opcode P Parameter type Brief description Analog
0168 -
0169 1 blip handle remove blip 0164
016A 2 blip handle, int change blip colour 0165
016B 2 blip handle, int change blip brightness 0166
016C 6 flt, flt, flt, int, int, var add blip for coordinate old 0167
016D 2 blip handle, int change blip scale 0168
016E 3 int, int, int set fading colour 0169
016F 2 int, int do fade 016A
0170 0 - get fading status 016B
0171 4 flt, flt, flt, flt add hospital restart 016C
0172 4 flt, flt, flt, flt add police restart 016D
0173 4 flt, flt, flt, flt override next restart 016E
0174 -
0175 2 player handle, var get player heading 0170
0176 2 player handle, flt set player heading 0171
0177 2 char handle, var get char heading 0172
0178 2 char handle, flt set char heading 0173
0179 2 car handle, var get car heading 0174
017A 2 car handle, flt set car heading 0175
017B 2 object handle, var get object heading 0176
017C 2 object handle, flt set object heading 0177
017D 2 player handle, object handle is player touching object 0178
017E -
017F 3 player handle, int, int set player weapon ammo 017A
0180 3 set char weapon ammo 017B
0181 -
0182 -
0183 -
0184 -
0185 1 var set on mission flag 0180
0186 ?
0187 -
0188 2 player handle, int is player health greater 0183
0189 2 char handle, int is char health greater 0184
018A 2 car handle, int is car health greater 0185
018B 2 car handle, var add blip for car 0186
018C 2 char handle, var add blip for char 0187
018D 2 object handle, var add blip for object 0188
018E 2 flt, flt, flt, var add blip with sphere to coordinate 0189
018F 2 flt, flt, flt, var add blip for coordinate 018A
0190 2 blip handle, int change blip display 018B
0191 4 int, flt, flt, flt add one off sound 018C
0192 5 flt, flt, flt, int, var add continuous sound 018D
0193 1 sound handle remove sound 018E
0194 1 car handle check car is flipped for 2 seconds 018F
0195 1 car handle add car to flipped check 0190
0196 1 car handle remove car from flipped check 0191
0197 1 char handle set char obj wait on foot 0192
0198 1 char handle set char objective to act like ped 0193
0199 4 char handle, flt, flt, flt set char objective to go to point 0194
019A 5 char handle, flt, flt, flt, flt set char objective to guard area 0195
019B 1 char handle  ? 0196
019C 6 player handle, flt, flt, flt, flt, int is player in area on foot 2d 0197
019D 6 player handle, flt, flt, flt, flt, int is player in area in car 2d 0198
019E 6 player handle, flt, flt, flt, flt, int is player stopped in area 2d 0199
019F 6 player handle, flt, flt, flt, flt, int is player stopped in area on foot 2d 019A
01A0 6 player handle, flt, flt, flt, flt, int is player stopped in area in car 2d 019B
01A1 8 player handle, flt, flt, flt, flt, flt, flt, int is player in area on foot 3d 019C
01A2 8 player handle, flt, flt, flt, flt, flt, flt, int is player in area in car 3d 019D
01A3 8 player handle, flt, flt, flt, flt, flt, flt, int is player stopped in area 3d 019E
01A4 8 player handle, flt, flt, flt, flt, flt, flt, int is player stopped in area on foot 3d 019F
01A5 8 player handle, flt, flt, flt, flt, flt, flt, int is player stopped in area in car 3d 01A0
01A6 6 char handle, flt, flt, flt, flt, int is char in area on foot 2d 01A1
01A7 6 char handle, flt, flt, flt, flt, int is char in area in car 2d 01A2
01A8 6 char handle, flt, flt, flt, flt, int is char stopped in area 2d 01A3
01A9 6 char handle, flt, flt, flt, flt, int is char stopped in area on foot 2d 01A4
01AA 6 char handle, flt, flt, flt, flt, int is char stopped in area in car 2d 01A5
01AB 8 char handle, flt, flt, flt, flt, flt, flt, int is char in area on foot 3d 01A6
01AC 8 char handle, flt, flt, flt, flt, flt, flt, int is char in area in car 3d 01A7
01AD 8 char handle, flt, flt, flt, flt, flt, flt, int is char stopped in area 3d 01A8
01AE 8 char handle, flt, flt, flt, flt, flt, flt, int is char stopped in area on foot 3d 01A9
01AF 8 char handle, flt, flt, flt, flt, flt, flt, int is char stopped in area in car 3d 01AA
01B0 6 car handle, flt, flt, flt, flt, int is car stopped in area 2d 01AB
01B1 8 car handle, flt, flt, flt, flt, flt, flt, int is car stopped in area 3d 01AC
01B2 6 car handle, flt, flt, flt, flt, int locate car 2d 01AD
01B3 6 car handle, flt, flt, flt, flt, int locate stopped car 2d 01AE
01B4 8 car handle, flt, flt, flt, flt, flt, flt, int locate car 3d 01AF
01B5 8 car handle, flt, flt, flt, flt, flt, flt, int locate stopped car 3d 01B0
01B6 3 player handle, int, int give weapon to player 01B1
01B7 3 char handle, int, int give weapon to char 01B2
01B8 -
01B9 2 player handle set player control 01B4
01BA 1 int force weather 01B5
01BB 1 int force weather now 01B6
01BC 0 - release weather 01B7
01BD 2 player handle, int set current player weapon 01B8
01BE 2 char handle, int set current char weapon 01B9
01BF -
01C0 4 object handle, var, var, var get object coordinates 01BB
01C1 4 object handle, flt, flt, flt set object coordinates 01BC
01C2 1 var get game timer 01BD
01C3 4 char handle, flt, flt, flt turn char to face coord 01BE
01C4 4 player handle, flt, flt, flt turn player to face coord 01BF
01C5 2 player handle, var store wanted level 01C0
01C6 1 car handle is car stopped 01C1
01C7 1 char handle mark char as no longer needed 01C2
01C8 1 car handle mark car as no longer needed 01C3
01C9 1 object handle mark object as no longer needed 01C4
01CA 1 char handle dont remove char 01C5
01CB 1 car handle dont remove car 01C6
01CC 1 object handle dont remove object 01C7
01CD 5 car handle, int, int, int, var create char as passenger 01C8
01CE 2 char handle, char handle set char obj kill char on foot 01C9
01CF 2 char handle, player handle set char obj kill player on foot 01CA
01D0 2 char handle, char handle set char obj kill char by any means 01CB
01D1 2 char handle, player handle set char obj kill player by any means 01CC
01D2 -
01D3 2 char handle, player handle set char flee player on foot till safe 01CE
01D4 2 char handle, char handle char avoid char on foot always 01CF
01D5 2 char handle, player handle char avoid player on foot always 01D0
01D6 2 char handle, char handle set char obj goto char on foot 01D1
01D7 2 char handle, player handle set char goto player on foot 01D2
01D8 2 char handle, car handle set char obj leave car 01D3
01D9 2 char handle, car handle set char obj enter car as passenger 01D4
01DA 2 char handle, car handle set char obj enter car as driver 01D5
01DB -
01DC -
01DD 2 char handle, object handle set char obj destroy object 01D8
01DE 2 char handle, car handle set char obj destroy car 01D9
01DF 5 char handle, flt, flt, flt, flt task actor walk to area 01DA
01E0 -
01E1 -
01E2 -
01E3 2 char handle, char handle set char as leader 01DE
01E4 2 char handle, player handle set player as leader 01DF
01E5 1 char handle leave group 01E0
01E6 3 char handle, int, int set char obj follow route 01E1
01E7 4 int, flt, flt, flt add route point 01E2
01E8 4 string, int, int, int print with number big 01E3
01E9 4 string, int, int, int print with number 01E4
01EA 4 string, int, int, int print with number now 01E5
01EB 4 string, int, int, int
01EC 6 flt, flt, flt, flt, flt, flt switch roads on 01E7
01ED 6 flt, flt, flt, flt, flt, flt switch roads off 01E8
01EE 2 car handle, var get number of passengers 01E9
01EF 2 car handle, var get maximum number of passengers 01EA
01F0 1 flt set car density multiplier 01EB
01F1 2 car handle, int set car heavy 01EC
01F2 1 char handle clear char threat search 01ED
01F3 10 flt, flt, flt, flt, flt, flt, flt, flt, flt, flt activate crane 01EE
01F4 2 flt, flt deactivate crane 01EF
01F5 1 int set max wanted level 01F0
01F6 -
01F7 -
01F8 1 car handle is car in air proper 01F3
01F9 1 car handle is car upsidedown 01F4
01FA 2 player handle, var get player char 01F5
01FB 0 - cancel override restart 01F6
01FC 2 player handle, int set police ignore player 01F7
01FD -
01FE 9 string, int, int, int, int, int, int, int, int start kill frenzy 01F9
01FF 1 var read kill frenzy status 01FA
0200 2 sqrt 01FB
0201 5 player handle, car handle, flt, flt, int locate player by any means car 2d 01FC
0202 5 player handle, car handle, flt, flt, int locate player on foot car 2d 01FD
0203 5 player handle, car handle, flt, flt, int locate player in car car 2d 01FE
0204 6 player handle, car handle, flt, flt, flt, int locate player by any means car 3d 01FF
0205 6 player handle, car handle, flt, flt, flt, int locate player on foot car 3d 0200
0206 6 player handle, car handle, flt, flt, flt, int locate player in car car 3d 0201
0207 5 char handle, car handle, flt, flt, int locate char by any means car 2d 0202
0208 5 char handle, car handle, flt, flt, int locate char on foot car 2d 0203
0209 5 char handle, car handle, flt, flt, int locate char in car car 2d 0204
020A 6 char handle, car handle, flt, flt, flt, int locate char by any means car 3d 0205
020B 6 char handle, car handle, flt, flt, flt, int locate char on foot car 3d 0206
020C 6 char handle, car handle, flt, flt, flt, int locate char in car car 3d 0207
020D 3 flt, flt, var generate random float in range 0208
020E 3 int, int, var generate random int in range 0209
020F 2 car handle, int lock car doors 020A
0210 1 car handle explode car 020B
0211 4 flt, flt, flt, int add explosion 020C
0212 1 car handle is car upright 020D
0213 2 char handle, char handle turn char to face char 020E
0214 2 char handle, player handle turn char to face player 020F
0215 2 player handle, char handle turn player to face char 0210
0216 3 char handle, flt, flt set char obj goto coord on foot 0211
0217 -
0218 6 int, int, flt, flt, flt, var create pickup 0213
0219 1 pickup handle has pickup been collected 0214
021A 1 pickup handle remove pickup 0215
021B 2 car handle, int set taxi lights 0216
021C 3 string, int, int print text big q 0217
021D 4 string, int, int, int print text with number big q 0218
021E 9 flt, flt, flt, flt, flt, flt, flt, flt, int, var create garage 0219
021F -
0220 2 car handle, int set target car for mission garage 021B
0221 1 garage handle is car in mission garage 021C
0222 1 int set free bombs 021D
0223 -
0224 -
0225 1 car handle does car have car bomb 0220
0226 2 player handle, int apply brakes to players car 0221
0227 2 player handle, int set player health 0222
0228 2 char handle, int set char health 0223
0229 2 car handle, int set car health 0224
022A 2 player handle, var get player health 0225
022B 2 char handle, var get char health 0226
022C 2 car handle, var get car health 0227
022D 2 car handle, int is car armed with bomb 0228
022E 3 car handle, int, int change car colour 0229
022F 6 flt, flt, flt, flt, flt, flt switch ped paths on 022A
0230 6 flt, flt, flt, flt, flt, flt switch ped paths off 022B
0231 2 char handle, char handle char look at char always 022C
0232 2 char handle, player handle char look at player always 022D
0233 2 player handle, char handle player look at char always 022E
0234 1 char handle stop char looking 022F
0235 1 player handle stop player looking 0230
0236 -
0237 -
0238 -
0239 -
023A 3 int, int, int set gang models 0235
023B 2 int, int set gang car 0236
023C 3 int, int, int set gang weapons 0237
023D -
023E 3 char handle, flt, flt set char obj run to coord 0239
023F -
0240 -
0241 2 int, string load special character 023C
0242 1 int has special character loaded 023D
0243 -
0244 -
0245 -
0246 1 player handle is player in remote mode 0241
0247 2 car handle, int arm car with bomb 0242
0248 2 char handle, int set char personality 0243
0249 3 flt, flt, flt set cutscene offset 0244
024A 2 char handle, int set anim group for char 0245
024B -
024C 1 int request model 0247
024D 1 int has model loaded 0248
024E 1 int mark model as no longer needed 0249
024F 3 phone handle, flt, flt get phone 024A



0250 -
0251 -
0252 -
0253 1 phone handle turn phone off 024E
0254 9 flt, flt, flt, flt, int, int, int, int, int create corona 024F
0255 -
0256 0
0257 0
0258 0
0259 0
025A 4 flt, flt, flt, flt restart critical mission 0255
025B 1 player handle is player playing 0256
0296 2 char handle, int set char heed threats 0291
0297 -
0298 1 var get controller mode 0293
0299 2 car handle, int set can respray car 0294
029A 1 car handle is car taxi vehicle 0295



029B 1 int unload special character 0296
029C 0 - reset number of models killed by player 0297
029D 2 int, var get number of models killed by player 0298
029E -
029F -
02A0 5 int, flt, flt, flt, var create object no offset 029B
02A1 1 car handle is boat 029C
02A2 -
02A3 -
02A4 1 player handle is player stopped 029F
02A5 1 char handle is char stopped 02A0
02A6 2 int, int message wait 02A1
02A7 -
02A8 1 int switch widescreen 02A3



02A9 -
02AA -
02AB -
02AC 5 flt, flt, flt, int, var add sprite blip for contact point 02A7
02AD 5 flt, flt, flt, int, var add sprite blip for coord 02A8
02AE 2 char handle, int set char only damaged by player 02A9
02AF 2 car handle, int set car only damaged by player 02AA



02B0 6 char handle, int, int, int, int, int set char proofs 02AB
02B1 6 car handle, int, int, int, int, int set car proofs 02AC
02B2 7 player handle, flt, flt, flt, flt, flt, int is player in angled area 2d 02AD
02B3 7 player handle, flt, flt, flt, flt, flt, int is player in angled area on foot 2d 02AE



02B4 7 player handle, flt, flt, flt, flt, flt, int is player in angled area in car 2d 02AF
02B5 7 player handle, flt, flt, flt, flt, flt, int is player stopped in angled area 2d 02B0
02B6 7 player handle, flt, flt, flt, flt, flt, int is player stopped in angled area on foot 2d 02B1
02B7 7 player handle, flt, flt, flt, flt, flt, int is player stopped in angled area in car 2d 02B2



02B8 9 player handle, flt, flt, flt, flt, flt, flt, flt, int is player in angled area 3d 02B3
02B9 9 player handle, flt, flt, flt, flt, flt, flt, flt, int is player in angled area on foot 3d 02B4
02BA 9 player handle, flt, flt, flt, flt, flt, flt, flt, int is player in angled area in car 3d 02B5
02BB 9 player handle, flt, flt, flt, flt, flt, flt, flt, int is player stopped in angled area 3d 02B6



02BC 9 player handle, flt, flt, flt, flt, flt, flt, flt, int is player stopped in angled area on foot 3d 02B7
02BD 9 player handle, flt, flt, flt, flt, flt, flt, flt, int is player stopped in angled area in car 3d 02B8
02BE -
02BF -
02C0 -
02C1 -
02C2 -
02C3 -
02C4 1 car handle is car in water 02BF
02C5 6 flt, flt, flt, var, var, var get closest char node 02C0
02C6 6 flt, flt, flt, var, var, var get closest car node 02C1
02C7 4 car handle, flt, flt, flt car goto coordinates accurate 02C2
02C8 -
02C9 -
02CA -
02CB -
02CC -
02CD -
02CE -
02CF 1 car handle is car on screen 02CA
02D0 1 char handle is char on screen 02CB
02D1 1 object handle is object on screen 02CC
02D2 2 int, int
02D3 4 flt, flt, flt, var get ground z for 3d coord 02CE



02D4 4 flt, flt, flt, var start script fire 02CF



02D5 1 fire handle is fire extinguished 02D0



02D6 1 fire handle remove fire 02D1



02D7 -
02D8 4 car handle, flt, flt, flt boat goto coords 02D3



02D9 1 car handle boat stop 02D4



02DA 6 player handle, flt, flt, flt, flt, int is player shooting in area 02D5



02DB -
02DC 2 player handle, int is current player weapon 02D7



02DD 2 char handle, int is current char weapon 02D8



02DE -
02DF -
02E0 2 car handle, flt set boat cruise speed 02DB



02E1 8 flt, flt, flt, flt, int, int, int, var get random char in area 02DC



02E2 5 string, int, int, int, var get random char in zone 02DD
02E3 1 player handle is player in taxi 02DE



02E4 1 player handle is player shooting 02DF



02E5 1 char handle is char shooting 02E0



02E6 5 flt, flt, flt, int, var create money pickup 02E1
02E7 2 char handle, int set char accuracy 02E2



02E8 2 car handle, var get car speed 02E3



02E9 1 string load cutscene 02E4



02EA 2 object handle, var create cutscene object 02E5
02EB 2 object handle, string set cutscene anim 02E6



02EC 0 - start cutscene 02E7



02ED 1 var get cutscene time 02E8



02EE 0 - has cutscene finished 02E9
02EF 0 - clear cutscene 02EA



02F0 0 - restore camera jumpcut 02EB



02F1 3 flt, flt, flt put hidden package 02EC



02F2 1 int set total hidden packages 02ED
02F3 -
02F4 -
02F5 -
02F6 -
02F7 2 char handle, int is char model 02F2



02F8 2 int, string load special model 02F3



02F9 -
02FA -
02FB 2 flt, var get sine 02F6



02FC 2 flt, var get cosine 02F7



02FD 2 car handle, var get car forward x 02F8



02FE 2 car handle, var get car forward y 02F9



02FF 2 garage handle, int change garage type 02FA



0300 10 flt, flt, flt, flt, flt, flt, flt, flt, flt, flt create crusher crane 02FB



0301 5 string, int, int, int, int print with 2 numbers 02FC



0302 5 string, int, int, int, int print with 2 numbers now 02FD



0303 5 string, int, int, int, int print with 2 numbers soon 02FE



0304 6 string, int, int, int, int, int print with 3 numbers 02FF
0305 6 string, int, int, int, int, int print with 3 numbers now 0300



0306 -
0307 7 string, int, int, int, int, int, int print with 4 numbers 0302



0308 -
0309 -
030A -
030B -
030C -
030D 9 string, int, int, int, int, int, int, int, int print with 6 numbers now 0309



030E -
030F -
0310 3 char handle, char handle, int set formation 030B



0311 1 int player made progress 030C



0312 1 int set max progress 030D



0313 1 int register jump distance 030E



0314 1 int register jump height 030F



0315 1 int register jump flips 0310



0316 1 int register jump spins 0311



0317 1 int register jump stunt 0312



0318 0 - register unique jump found 0313



0319 1 int set unique jumps total 0314



031A 0 - register passenger dropped off taxi 0315



031B 1 int register money made taxi 0316



031C 0 - register mission given 0317



031D 1 string register mission passed 0318



031E 2 char handle, int set char running 0319



031F 0 - remove all script fires 031A



0320 -
0321 -
0322 2 char handle, int has char been damaged by weapon 031D



0323 2 car handle, int has car been damaged by weapon 031E



0324 2 char handle, char handle is char in chars group 031F
0325 2 char handle, player handle is char in players group 0320



0326 1 char handle explode char head 0321



0327 1 player handle explode player head 0322
0328 2 car handle, int anchor boat 0323



0329 3 string, int, int set pedgroup info 0324



032A 2 car handle, var start car fire 0325



032B 2 char handle, var start char fire 0326



032C 6 flt, flt, flt, flt, int, var get random car of type in area 0327



032D -
032E 1 garage handle has respray happened 0329



032F 1 int set behind camera mode 032A



0330 7 int, int, int, flt, flt, flt, var create pickup with ammo 032B



0331 2 car handle, car handle set car ram car 032C



0332 -
0333 -
0334 -
0335 2 player handle, int set player never gets tired 0330
0336 2 player handle, int set player fast reload 0331



0337 2 char handle, int set char bleeding 0332



0338 -
0339 2 car handle, int ?
033A 1 int set free resprays 0335
033B 2 player handle, int set player visible 0336
033C 2 char handle, int set char visible 0337
033D 2 car handle, int set car visible 0338
033E 11 flt, flt, flt, flt, flt, flt, int, int, int, int, int is area occupied 0339
033F -
0340 -
0341 -
0342 -
0343 3 flt, flt, string display text 033E
0344 2 flt, flt set text scale 033F
0345 4 int, int, int, int set text colour 0340
0346 1 int set text justify 0341
0347 1 int set text centre 0342
0348 1 flt set text line width 0343
0349 -
034A 1 int set text background 0345
034B -
034C -
034D 1 int set text proportional 0348
034E -
034F 1 int ?
0350 1 int ?
0351 1 int ?
0352 4 object handle, flt, flt, int rotate object 034D
0353 8 object handle, flt, flt, flt, flt, flt, flt, int slide object 034E
0354 1 char handle remove char elegantly 034F
0355 2 char handle, int set char stay in same place 0350
0356 -
0357 2 char handle, string undress char 0352
0358 1 char handle dress char 0353
0359 -
035A -
035B 7 int, flt, flt, flt, flt, flt, flt is explosion in area 0356
035C -
035D -
035E -
035F -
0360 -
0361 5 object handle, car handle, flt, flt, flt place object relative to car 035C
0362 1 object handle make object targettable 035D
0363 2 player handle, int add armour to player 035E



0364 2 char handle, int add armour to char 035F
0365 1 garage handle open garage 0360
0366 1 garage handle close garage 0361
0367 4 char handle, flt, flt, flt warp char from car to coord 0362
0368 6 flt, flt, flt, flt, int, int set visibility of closest object of type 0363
0369 2 char handle, char handle has char spotted char 0364
036A 1 char handle set char obj hail taxi 0365
036B 1 object handle has object been damaged 0366
036C 9 string, int, int, int, int, int, int, int, int start kill frenzy headshot 0367
036D 10 flt, flt, flt, flt, flt, flt, flt, flt, flt, flt create ev crane 0368
036E 2 player handle, car handle warp player into car 0369
036F 2 char handle, car handle warp char into car 036A
0370 1 int ?
0371 -
0372 5 string, int, int, int, int print text with 2 numbers big 036D
0373 6 string, int, int, int, int, int print text with 3 numbers big 036E
0374 -
0375 -
0376 -
0377 3 char handle, int, int set char wait state 0372
0378 0 - set camera behind player 0373
0379 -
037A -
037B 4 flt, flt, flt, var create random char 0376
037C 1 char handle set char obj steal any car 0377
037D -
037E -
037F -
0380 -
0381 -
0382 -
0383 6 flt, flt, flt, flt, flt, flt is sniper bullet in area 037E



0384 -
0385 -
0386 4 object handle, flt, flt, flt set object velocity 0381



0387 2 object handle, int set object collision 0382



0388 1 car handle is icecream jingle on 0383



0389 4 string, string, int, int print string in string now 0384
038A -
038B -
038C -
038D -
038E -
038F 6 flt, flt, flt, flt, flt, flt is point obscured by a mission entity 038A
0390 0 load all models now 038B



0391 4 object handle, flt, flt, flt add to object velocity 038C



0392 -
0393 -
0394 -
0395 -
0396 -
0397 2 object handle, int set object dynamic 0392



0398 -
0399 1 int play mission passed tune 0394



039A 5 flt, flt, flt, flt, int clear area 0395



039B 1 int freeze onscreen timer 0396



039C 2 car handle, int switch car siren 0397



039D -
039E 7 flt, flt, flt, flt, flt, flt, flt ?
039F -
03A0 -
03A1 2 car handle, int set car watertight 039C



03A2 12 int, flt, flt, flt, flt, flt, flt, flt, int, int, int, int add moving particle effect 039D



03A3 2 char handle, int set char cant be dragged out 039E
03A4 3 car handle, flt, flt turn car to face coord 039F



03A5 3 car handle, flt, flt is crane lifting car 03A0



03A6 4 flt, flt, flt, flt show sphere at coord 03A1



03A7 2 car handle, int set car status 03A2



03A8 1 char handle is char male 03A3



03A9 1 string script name 03A4



03AA -
03AB -
03AC 1
03AD 1
03AE 0
03AF 3 flt, flt, flt police radio message 03AA



03B0 2 car handle, int set car strong 03AB



03B1 1 int remove route 03AC



03B2 1 int switch rubbish 03AD



03B3 6 flt, flt, flt, flt, flt, flt remove particle effects in area 03AE



03B4 1 int switch streaming 03AF



03B5 1 garage handle is garage open 03B0



03B6 1 garage handle is garage closed 03B1



03B7 -
03B8 -
03B9 -
03BA -
03BB 6 flt, flt, flt, flt, int, int swap nearest building model 03B6



03BC 1 int switch world processing 03B7



03BD 1 player handle remove all player weapons 03B8



03BE -
03BF 6 flt, flt, flt, flt, flt, flt clear area of cars 03BA



03C0 1 garage handle set garage door to rotate 03BB



03C1 5 flt, flt, flt, flt, var add sphere 03BC



03C2 1 sphere handle remove sphere 03BD



03C3 -
03C4 2 player handle, int set everyone ignore player 03BF



03C5 2 char handle, var store car char is in no save 03C0



03C6 2 player handle, var store car player is in no save 03C1



03C7 -
03C8 3 global var, int, string display onscreen timer with string 03C3



03C9 3 global var, int, string display onscreen counter with string 03C4



03CA 4 flt, flt, flt, flt create random car for car park 03C5



03CB 1 int is collision in memory 03C6



03CC 1 flt set wanted multiplier 03C7



03CD 0 set camera in front of player 03C8



03CE 1 car handle is car visibly damaged 03C9



03CF 1 object handle does object exist 03CA



03D0 3 flt, flt, flt load scene 03CB



03D1 3 car handle, flt, int add stuck car check 03CC



03D2 1 car handle remove stuck car check 03CD



03D3 1 car handle is car stuck 03CE



03D4 2 int, string load mission audio 03CF



03D5 1 int has mission audio loaded 03D0



03D6 1 int play mission audio 03D1



03D7 1 int has mission audio finished 03D2



03D8 7 flt, flt, flt, var, var, var, var get closest car node with heading 03D3



03D9 2 garage handle, car handle has import garage slot been filled 03D4



03DA 1 string clear this print 03D5



03DB 1 string clear this big print 03D6



03DC 4 int, flt, flt, flt set mission audio position 03D7



03DD 0 - activate save menu 03D8



03DE 0 - did save complete successfully 03D9



03DF 1 garage handle set garage camera follows player 03DA



03E0 -
03E1 2 pickup handle, var add blip for pickup 03DC



03E2 -
03E3 1 flt set ped density multiplier 03DE



03E4 1 int force random ped type 03DF



03E5 -
03E6 1 var get number of packages found 03E1



03E7 1 char handle task char exit any car 03E2



03E8 -
03E9 1 int set text right justify 03E4



03EA 1 string print help 03E5



03EB 0 clear help 03E6



03EC 1 int flash hud object 03E7



03ED -
03EE 1 char handle  ?
03EF 1 int set generate cars around camera 03EA



03F0 0 clear small prints 03EB



03F1 0 has ev crane collected all cars 03EC



03F2 2 car handle, int set upsidedown car not damaged 03ED



03F3 1 player handle can player start mission 03EE



03F4 1 player handle make player safe for cutscene 03EF



03F5 1 int use text commands 03F0



03F6 2 int, int set threat for ped type 03F1



03F7 2 int, int clear threat for ped type 03F2



03F8 3 car handle, var, var get car colours 03F3



03F9 1 int set all cars can be damaged 03F4



03FA 2 car handle, int set car can be damaged 03F5



03FB -
03FC -
03FD -
03FE 3 char handle, char handle, int set chars chatting 03F9



03FF -
0400 -
0401 -
0402 2 player handle, int set player handling responsiveness 03FD



0403 2 char handle, int set char money 03FE



0404 -
0405 7 object handle, flt, flt, flt, var, var, var get offset from object in world coords 0400



0406 0 - register life saved 0401



0407 0 - register criminal caught 0402



0408 1 int register ambulance level 0403



0409 0 - register fire extinguished 0404



040A 1 phone handle enable phone 0405



040B -
040C 7 car handle, flt, flt, flt, var, var, var get offset from car in world coords 0407



040D 1 int set total number of kill frenzies 0408



040E 0 - blow up rc buggy 0409



040F -
0410 0 - is french version 040B



0411 0 - is german version 040C



0412 1 int clear mission audio 040D



0413 -
0414 -
0415 -
0416 2 char handle, int set char use pednode seek 0411



0417 -
0418 2 player handle, int set get out of jail free 0413



0419 2 player handle, int set free health care 0414



041A -
041B  ?



041C 1 int start mission 0417



041D 2 set object draw last 0418



041E 3 player handle, int, var get ammo in player weapon 0419



041F -
0420 -
0421 2 char handle, int set char say 041C



0422 1 flt set near clip 041D



0423 2 int, int set radio channel 041E



0424 -
0425 -
0426 -
0427 2 garage handle, car handle does garage contain car 0422



0428 2 car handle, flt set car improve handling 0423



0429 0 are measurements in meters 0424



042A 2 flt, var convert meters to feet 0425



042B 6 flt, flt, flt, flt, flt, flt 0426



042C -
042D 2 car handle, int set car avoid level transitions 0428



042E -
042F -
0430 6 flt, flt, flt, flt, flt, flt clear area of chars 042B



0431 1 int set total missions 042C



0432 2 int, var convert meters to feet int 042D



0433 2 int, int/flt register fastest time 042E



0434 2 int, int/flt register highest score 042F



0435 3 char handle, car handle, int warp char into car as passenger 0430



0436 2 car handle, int is car passenger seat free 0431



0437 3 car handle, int, var get char in passenger seat 0432



0438 2 char handle, int set char is criminal 0433



0439 1 int start credits 0434
043A 0 - stop credits 0435
043B 0 - are credits finished 0436
043C 8 int, flt, flt, flt, flt, flt, flt, flt scatter single particle 0437
043D -
043E -
043F -
0440 -
0441 1 int set music does fade 043C
0442 -
0443 -
0444 0 - play end of game tune 043F
0445 0 - stop end of game tune 0440
0446 2 car handle, var get car model 0441
0447 2 player handle, car handle is player sitting in car 0442



0448 1 player handle is player sitting in any car 0443
0449 -
044A 0 are any car cheats activated 0445
044B 2 char handle, int set char dismemberment 0446
044C -
044D 2 char handle, car handle is char sitting in car 0448
044E 1 char handle is char sitting in any car 0449



044F 1 player handle is player on foot 044A
0450 1 char handle is char on foot 044B
0451 -
0452 1 string load splash screen 044D
0453 -
0454 -
0455 1 car handle set car on path to player 0450
0456 0 - load end of game tune 0451
0457 0 enable player control camera 0452
0458 4 object handle, flt, flt, flt set object rotation 0453



0459 3 flt, flt, flt
045A -
045B -
045C 2 player handle, char handle is player targeting char 0457
045D 2 is player targeting object 0458
045E 1 string terminate all scripts with this name 0459
045F 4 flt, flt, string, int display text with number 045A



0460 5 flt, flt, string, int, int display text with 2 numbers 045B
0461 0 abort mission 045C
0462 0  ?
0463 -
0464 2 car handle, int make all occupants of specified car to exit the car 045F
0465 2 flt, int
0466 -
0467 -
0468 3
0469 8 char handle, car handle, flt, flt, flt, int, flt, int attach char to car 0464



046A 1 char handle detach char from car 0465
046B 2 car handle, int set car to stay in "fast" lane 0466
046C 1 char handle clear char last weapon damage 0467
046D 1 car handle clear car last weapon damage 0468



046E 10 flt, flt, flt, flt, int, int, int, int, int, var get law enforcement in area 0469
046F -
0470 2 char handle, car handle task leave car and flee 046B
0471 2 car handle, var get driver of car 046C
0472 2 char handle, var get char number of followers 046D
0473 6 player handle, flt, flt, flt, flt, int give remote controlled model to player 046E
0474 2 player handle, var get current player weapon 046F
0475 2 char handle, var get current char weapon 0470
0476 5 char handle, object handle, flt, flt, int locate char any means object 2d 0471
0477 5 char handle, object handle, flt, flt, int locate char on foot object 2d 0472
0478 5 char handle, object handle, flt, flt, int locate char in car object 2d 0473
0479 6 char handle, object handle, flt, flt, flt, int locate char any means object 3d 0474
047A 6 char handle, object handle, flt, flt, flt, int locate char on foot object 3d 0475
047B 6 char handle, object handle, flt, flt, flt, int locate char in car object 3d 0476
047C 3 car handle, int, int set car driving behavior 0477
047D -
047E -
047F 1 char handle is char on any bike 047A
0480 -
0481 -
0482 -
0483 1 player handle is player on any bike 047E
0484 -
0485 2 char handle, int is char looking at death o f char with pedtype 0480
0486 1 flt set enter car range multiplier 0481
0487 1 flt set threat reaction range multiplier 0482
0488 2 char handle, int 0483
0489 2 player handle, var get remote controlled car 0484
048A 0
048B -
048C -
048D 1 is model available 0488
048E 2 char handle, int shut character up 0489
048F 1 int set enable rc detonate 048A
0490 2 car handle, int
0491 3 flt, flt, flt is any pickup at coords 048C
0492 -
0493 -
0494 1 char handle remove all char weapons 048F
0495 2 player handle, int has player got weapon 0490
0496 2 char handle, int has char got weapon 0491
0497 -
0498 2 car handle, int set tank contact explosion 0493
0499 5 int, var, var, var, var get joystick data 0494
049A 1 car handle is car on fire 0495
049B 2 car handle, int is car tyre burst 0496



049C -
049D -
049E -
049F -
04A0 -
04A1 3 int, flt, var create script path 049C
04A2 2 spath handle, object handle attach script path to object 049D
04A3 2 spath handle, flt set script path speed 049E
04A4 2 spath handle, flt set script path distance 049F
04A5 -
04A6 1 spath handle reset script path 04A1
04A7 5 car handle, flt, flt, flt, int set heli fly to coord 04A2
04A8 2
04A9 2
04AA 4 char handle, flt, flt, flt 04A5
04AB 6 flt, flt, flt, int, int, var create protection pickup 04A6
04AC -
04AD 1 player handle is player in any boat 04A8
04AE -
04AF 1 player handle is player in any heli 04AA
04B0 -
04B1 1 player handle is player in any plane 04AC
04B2 1 char handle is char in water 04AD
04B3 2 04AE



04B4 2 04AF
04B5 2 04B0
04B6 2 04B1



04B7 2 04B2
04B8 2 04B3
04B9 2 04B4



04BA 2 04B5
04BB 2 04B6
04BC 2 04B7
04BD 5 char handle, int, var, var, var get char weapon in slot 04B8
04BE 12 flt, flt, flt, flt, flt, var, var, var, var, var, var, var get closest straight road 04B9
04BF 2 car handle, flt set car forward speed 04BA
04C0 1 int  ?
04C1 1 string set cutscene animation to loop 04BC
04C2 2 car handle, int mark car as convoy car 04BD
04C3 1 player handle reset player chaos level 04BE
04C4 2 player handle, var get player chaos level 04BF



04C5 6 flt, flt, flt, flt, flt, flt create police roadblock 04C0
04C6 0 release police roadblock 04C1
04C7 2 char handle, char handle task char go to char 04C2
04C8 -
04C9 7 char handle, flt, flt, flt, var, var, var get offset from char in world coords 04C4
04CA 1 char handle has char been photographed 04C5
04CB 2 char handle, char handle task aim gun at char 04C6
04CC 1 int set green scanlines 04C7



04CD -
04CE 1 player handle is player in flying vehicle 04C9
04CF -
04D0 -
04D1 -
04D2 -
04D3 5 flt, flt, flt, int, var create icon marker 04CE
04D4 1 int add to money spent on fashion stat 04CF
04D5 2 car handle, flt force heli looking angle 04D0
04D6 1 car handle reset heli looking angle 04D1



04D7 5 car handle, flt, flt, flt, int set plane fly to coord 04D2
04D8 7 flt, flt, flt, int, var, var, var get nth closest car node 04D3
04D9  ?
04DA 9 flt, flt, flt, flt, int, int, int, int, int draw corona 04D5
04DB 1 int set enable rc detonate on contact 04D6
04DC 2 char handle, int freeze char position 04D7



04DD 2 char handle, int set char drowns in water 04D8
04DE 2 object handle, int set object records collisions 04D9
04DF 1 object handle has object collided with anything 04DA
04E0 0 remove rc buggy 04DB



04E1  ?
04E2 2 char handle, var get char armour 04DD



04E3 -
04E4 2 car handle, int
04E5 2 car handle, int
04E6 1 car handle open and freeze car trunk 04E1
04E7 2 player handle shut player up 04E2
04E8 3 player handle, int, int set player mood 04E3
04E9 2 flt, flt request collision 04E4
04EA 6 object handle, flt, flt, flt, flt, int locate object 2d 04E5
04EB 8 object handle, flt, flt, flt, flt, flt, flt, int locate object 3d 04E6
04EC 1 object handle is object in water 04E7
04ED -
04EE 6 object handle, flt, flt, flt, flt, int is object in area 2d 04E9
04EF 8 object handle, flt, flt, flt, flt, flt, flt, int is object in area 3d 04EA
04F0 3 char handle, int, int task duck 04EB



04F1 13 string, int, int, int, int, int, int, int, int, int, int, int, int set zone car class info 04EC
04F2 1 string request anims 04ED
04F3 1 string have anims loaded 04EE
04F4 1 string remove anims 04EF



04F5 1 char handle
04F6 1 car handle
04F7 -
04F8 1 char handle move char from passenger seat to driver seat 04F3
04F9 8 char handle, object handle, flt, flt, flt, int, flt, int attach char to object 04F4
04FA 3 char handle, player handle, int
04FB -
04FC 4 global var, int, int, string display nth onscreen counter with string 04F7
04FD 13 int, flt, flt, flt, flt, flt, flt, flt, flt, flt, flt, flt, flt define police trigger 04F8
04FE 2 int, int set sky colors 04F9
04FF 1 int reset interior colors 04FA
0500 -
0501 7 player handle, var, var, var, var, var, var store stunt data 04FC
0502 -
0503 2 car handle, int burst car tyre 04FE
0504 1 char handle
0505 2 player handle, string change player skin 0500
0506 2 player handle, int set player can do drive by 0501
0507 3 char handle, flt, flt task flee to point 0502
0508 3 flt, flt, flt create rappel 0503
0509 -
050A -
050B 3 int, int, int
050C 1 int set camera interference 0507
050D 1 car handle close all car doors 0508
050E 5 flt, flt, flt, flt, var get distance between coords 2d 0509
050F 7 flt, flt, flt, flt, flt, flt, var get distance between coords 3d 050A
0510 1 car handle pop car boot 050B
0511 -
0512 1 char handle is char leaving vehicle to die 050D
0513 2 object handle, car handle
0514 -
0515 5 char handle, flt, flt, flt, flt
0516 -
0517 1 string print help forever 0512
0518 -
0519 3 char handle, int, int set char can be damaged by gang members 0514



051A ? 0515



051B -
051C 5 string, flt, flt, flt, var create locked property pickup 0517



051D 6 string, flt, flt, flt, int, var create forsale property pickup 0518



051E 2 car handle, int freeze car position 0519



051F 2 char handle, char handle has char been damaged by char 051A



0520 2 char handle, car handle has char been damaged by car 051B



0521 2 car handle, char handle has car been damaged by char 051C



0522 2 car handle, car handle has car been damaged by car 051D



0523 1 var get current radio station 051E



0524 -
0525 -
0526 1 char handle is char drowning in water? 0521



0527 0 disable cutscene shadows 0522



0528 3 flt, flt, flt glass has been shattered nearby 0523



0529 3 object handle, object handle, int attach object to object/bone 0524
052A 3 object handle, object handle, string attach object to component of object 0525



052B 2 char handle, int set char to stay in car when jacked 0526



052C -
052D 1 int add to money spent on weapon stat 0528



052E 1 int add to money spent on property stat 0529



052F -
0530 2 char handle, int task use mobile phone 052B



0531 2 player handle, int set drunk cam 052C



0532 -
0533 -
0534 -
0535 -
0536 1 int add to stores knocked off stat 0531



0537 -
0538 1 int add to assassination contracts stat 0533



0539 1 int add to pizzas delivered stat 0534



053A -
053B 1 int add to drug deals made stat 0536



053C -
053D -
053E -
053F -
0540 -
0541 2 char handle, int set char in players group can fight 053C



0542 1 char handle clear char wait state 053D



0543 6 int, flt, flt, flt, flt, var get random car of specific type in area 053E



0544 2 car handle, int set can burst car tires 053F



0545 2 player handle, int set player auto aim 0540



0546 1 car handle fire vehicle gun 0541



0547 1 int add property to property owned stat 0542



0548 1 int add bloodring kills stat 0543



0549 1 int save longest time in bloodring stat 0544



054A 0
054B 2 player handle, car handle is player touching vehicle 0546



054C -
054D 6 player handle, int, int, flt, flt, flt check for ped model around player 0548



054E 1 char handle clear char follow path 0549



054F 2 char handle, int set char can be shot in vehicle 054A



0550 2 object handle, car handle attach object to car 054B



0551 1 string load mission text 054C



0552 1 int set stadium message 054D



0553 1 char handle clear char last damage entity 054E



0554 1 car handle clear car last damage entity 054F



0555 2 object handle, int 0550



0556 1 int set Kaufman Cabs radio 0551



0557 1 int set riot noise 0552



0558 -
0559 -
055A -
055B 8 flt, flt, flt, flt, flt, flt, flt, flt create cab 0556



055C 0 ?
055D -
055E -
055F 1 int set secondary trash 055A



0560 5 int, flt, flt, flt, var create clothes pickup 055B



0561 -
0562 2 player handle, int make player fire proof 055D



0563 2 player handle, int increase player max health 055E



0564 2 player handle, int increase player max armour 055F



0565 2 car handle, var create random char as driver 0560
0566 3 car handle, int, var create random char as passenger 0561



0567 2 char handle, int set char ignore threats behind objects 0562



0568 2 player handle, int ensure player has a drive-by weapon 0563



0569 1 car handle set helicopter simulate crash land 0564
056A 4 flt, flt, flt, int add explosion with no sound 0565



056B 2 object handle, int set object area visible 0566



056C -
056D 2 char handle, int set char never targetted 0568



056E 1 string load uncompressed animation 0569



056F 0 has cutscene finished 056A



0570 2 char handle, int set char to crouch when threatened 056B
0571 1 char handle is char in any police vehicle 056C



0572 1 char handle does char exist 056D



0573 1 car handle does car exist 056E



0574 -
0575 5 int, flt, flt, flt, var create asset radar marker with icon 0570



0576 1 char handle 0571



0577 1 int set all taxis have jump boost and nitro 0572



0578 2 char handle, int 0573



0579 2 car handle, int 0574



057A -
057B -
057C -
057D 1 int save highest vigilante level stat 0578



057E 1 char handle clear all char anims 0579



057F 2 garage handle, int set garage to max cars 057A



0580 0 - are wanted stars flashing 057B



0581 1 int set weather table 057C



0582 1 int force radio to play audio 057D



0583 1 int set radar gray 057E



0584 2 player handle, var get player number of coach passengers dropped off 057F



0585 3 char handle, car handle, var 0580



0586 1 int display radar 0581



0587 2 int, int register best position 0582



0588 2 player handle, string 0583
0589 ? char handle 0584



058A 0 - is pressing fire button in car 0585



058B 1 char handle is distribution ped finished dealing 0586



058C 2 car handle, int 0587



058D 2 char handle, int 0588



058E -
058F 6 flt, flt, flt, flt, flt, flt 058A



0590 1 char handle 058B



0591 1 var get progress percentage 058C



0592 4 flt, flt, flt, flt set mission restart taxi start 058D



0593 4 flt, flt, flt, flt set mission restart taxi destination 058E



0594 8 char handle, flt, flt, flt, flt, int, int, int set random ice cream customer in area 058F



0595 -
0596 4 flt, flt, flt, flt unlock all car doors in area 0591



0597 2 int, int set gang to attack player with cops 0592



0598 2 char handle, int set char frightened in jacked car 0593



0599 2 car handle, int set vehicle to fade in 0594
059A 0 - register odd job mission passed 0595



059B 1 player handle is player in mission restart taxi 0596



059C 1 char handle is char ducking 0597



059D 3 object handle, flt, int stir ground around object 0598
059E 1 int register highest firefighter level 0599



059F 0 059A



05A0 1 car handle disarm car bomb 059B



Edited by spaceeinstein
Link to comment
Share on other sites

I've already documented about 20-30 opcodes (VCS), but haven't really update my VCSSCM.ini. Perhaps you want my main.txt from Stories with updated stuff and you'd update the list from it?

Link to comment
Share on other sites

spaceeinstein

Post anything you have. The more the better. I want to finish up LCS first so it will be a while before I will make a list for VCS.



It's amazing at the opcodes that R* Leeds kept but not use. Here's 036D (create ev crane), which was never used, in action:

user posted image



And here's 02F1 (create hidden package), which was also never used, in action:

user posted image

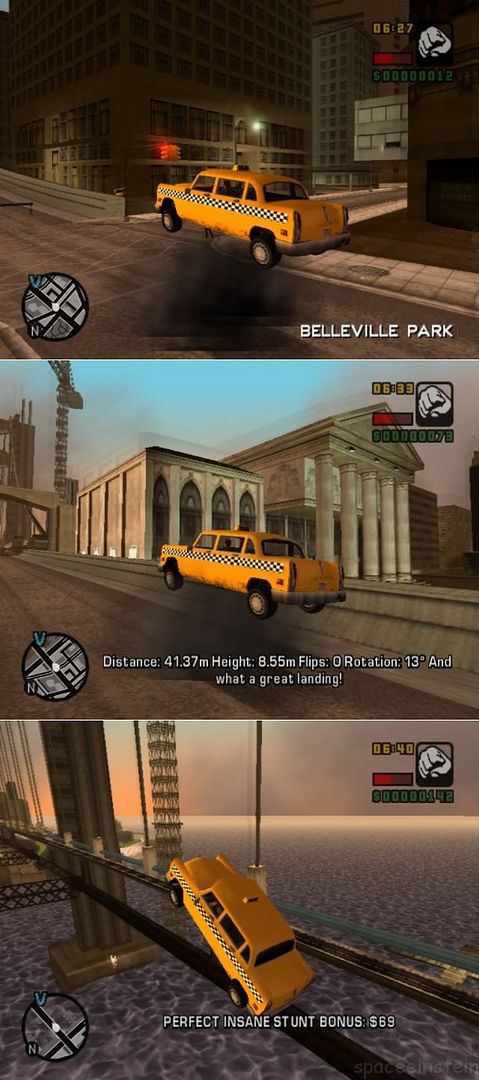

And here's 0577 (taxi bost jump), which was also never used, in action:

user posted image

Edited by spaceeinstein
Link to comment
Share on other sites

And here's 02F1 (create hidden package), which was also never used, in action:

How did they create proper hidden packages then?

Link to comment
Share on other sites

How are you creating the scm? Hex editor?

Or is it possible to edit SB's lcs ini's to allow it to compile properly?

Link to comment
Share on other sites

spaceeinstein



How did they create proper hidden packages then?

I was also surprised at how they created the packages. They used the regular pickup opcode:



0218: CREATE_PICKUP #PACKAGE1IZZY 3 xxx xxx xxx xxx



And uses picked up check opcode to record them:



0219:   HAS_PICKUP_BEEN_COLLECTED $562(1@,100)







How are you creating the scm? Hex editor?

Yes. Right now I mainly test opcodes that have an effect using a few lines of code. Creating loops to test conditional opcodes and more complex opcodes will be a pain. It shouldn't be too difficult for Seemann to make a compiler for the Stories since he already made a decompiler but he hasn't updated Sanny Builder in such a long time.

Edited by spaceeinstein
Link to comment
Share on other sites

Seemann has no access to Sanny source at all now.

Link to comment
Share on other sites

spaceeinstein

Oh, that's unfortunate. What happened?

Link to comment
Share on other sites

I don't really know, he only said he has no access to the PC which has all the source code.



Sanny needs updating at all, not only due to Stories. Native scripting syntax is waiting.

Link to comment
Share on other sites

spaceeinstein

VC (04C7) LCS (04CC)
user posted image user posted image

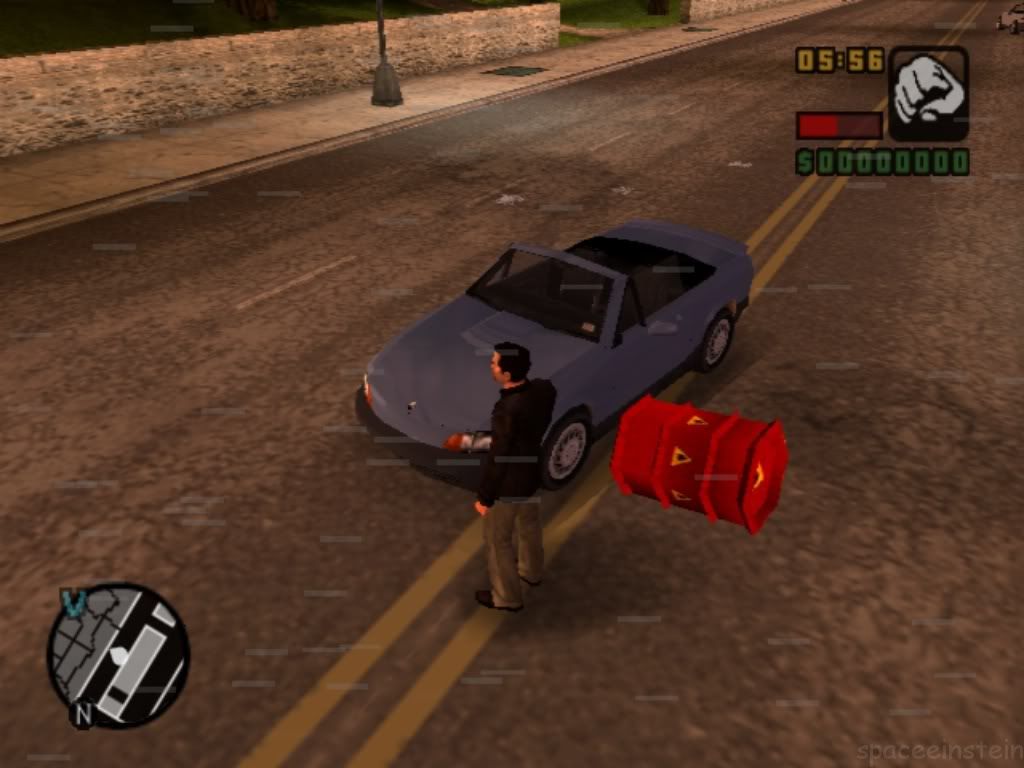

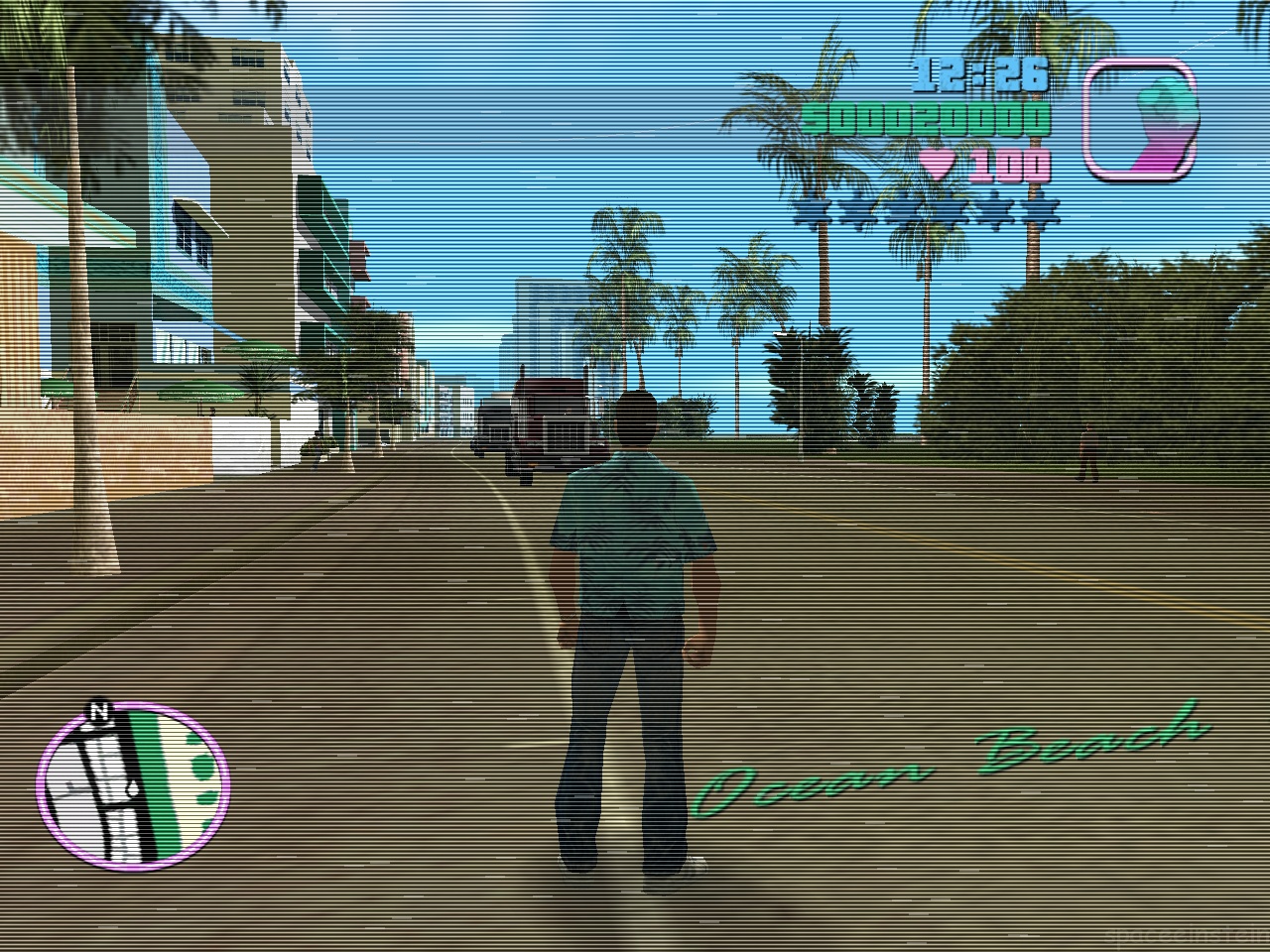

0507 050C
user posted image user posted image
Something I found interesting but useless. LCS does support scripted path opcodes but the game does not have any scripted paths by default. I have no idea how to load a spath file into the game so these scripted path opcodes are essentially useless. Another interesting unused opcode, 0531, sets the drunk cam, works perfectly fine when in a vehicle and behaves almost like VC without the witewash effect, but the camera freaks out if you're on foot.



EDIT: LCSSCM.INI update

So it seems that all opcodes from 0000 to 012A matches the trilogy opcodes, but somehow every opcode from 0135 and onwards are consistently five opcodes ahead of the trilogy list. LCS basically shares almost the same exact list, just five opcodes offset. It seems like the list is based directly off VC's but included many from III. There are some inconsistent opcodes, like 0439 requiring a parameter. This update uses R*-style naming conventions and original ordering used above. It also contains unsupported opcodes for the sake of completion. I'm guessing a only handful of people have actually modified the script file so this dramatic change shouldn't hurt anyone. There were many errors in the old INI list, many duplicate entries and grossly misnamed opcode descriptions.

Edited by spaceeinstein
Link to comment
Share on other sites

They probably just used an enum and added 5 commands somewhere. Will you be working on versions of these LCS/VCS opcode lists with the parameters in-order?

Link to comment
Share on other sites

spaceeinstein

My lists will have parameters in order. It makes it much easier for me to hex edit. I'm not making the non-ordered version since I doubt entry-level coders can mod the Stories games.

Link to comment
Share on other sites

Good, in that case I could pretty easily add OpcodeDB support for those games (+ keywords) later. I've been spending hours renaming every sascm.ini and opcodes.txt line in SA for v2 and I'm only up to 060F. Not a task I'm looking forward to repeating.

Link to comment
Share on other sites

spaceeinstein

Updates on 050C, 0531, and 0577 read above (use CTRL+F in your browser). I am heading into the realm of completely unknown opcodes. It seems that this realm is not based on the trilogy opcodes list and is completely built from scratch for LCS. Here are some so far:



060C: store_onfoot_camera_mode {var}



This stores the current onfoot camera mode into the variable.



060D: set_onfoot_camera_mode {int}



Like 032A but on foot only, this sets the on-foot camera mode between 1 and 3.



0613: freeze_onfoot_camera_mode {int}



Set to 1, this freezes the onfoot camera mode, preventing you from being able to change the camera mode.



05F9: register_cash_made_collecting_trash {int}0640: register_noodles_delivered {int}0641: register_scrapyard_challenge_highest_score {int}



Self explanatory. I'm surprised LCS followed III/VC's style of using an opcode for each stat instead of following SA's style of using just one opcode for each stat. Here are more stats-related opcodes



05FD: register_rcrace_best_time {int1:rc race} {int2:time}05FE: register_rcrace_best_position {int1:rc race} {int2:position}



RC Race index: 0=Thrashin' RC, 1=Ragin' RC, 2=Chasin' RC

NOTE: 05FD by itself will show no effect! You must use 05FE and the corresponding race index if you want to use 05FD.



0667: register_go_go_faggio_best_time {int}



This is the first (and hopefully only) stat I've seen that records milliseconds instead of seconds.



0604: register_race_fastest_time {int1:race} {int2:time}0605: register_race_fastest_lap {int1:race} {int2:time}0606: register_race_best_position {int1:race} {int2:position}



Race index: 0=Low Rider Rumble, 1=Deimos Dash, 2=Wi-Cheetah Run, 3=Red Light Racing, 4=Torrington TT, 5=Gangsta GP

NOTE: 0604 and 0605 by themselves will show no effect! You must use 0606 and the corresponding race index if you want to use 0604 or 0605.



05C9: draw_permanent_corona {flt1:x} {flt2:y} {flt3:z} {flt4:size} {int1:type} {int2:lensflare} {int3:r} {int4:g} {int5:b} {var}



This draws a corona, similar to this, but can be permanent. Corona types: 6=circle, 5=ring, 4=headlight, 3=reflection, 2=moon

Edited by spaceeinstein
Link to comment
Share on other sites

  • 2 years later...

Has somebody contact to the LCS CHEATDEVICE team ? They had the ability to change handling.cfg values (PIMP MY GARAGE)

Link to comment
Share on other sites

  • 1 year later...

More opcodes for LCS





061F=1,build_world_geometry %1d% // some debug stuff??0620=4,store_building_swap %1d% unk_flags %2d% %3d% %4d% // todo0623=0, (unknown) //multiplayer related, disable LUA? 0635=2,set_WRLD %1d% mode_to %2d%0636=0,  unknown_check // check if building swap is in process?0637=0,  unknown_check // check if building swap is finished?0638=0, swap_world_to_streamed_sector // like a refresh render? 063A=1,save_longest_face_plant_dist %1d%063B=1,save_karmageddon_best_time %1d%063C=1,save_max_kills_on_rctriad %1d%063D=1,save_highest_level_slash_tv %1d%063E=1,save_money_made_with_slash_tv %1d%063F=1,save_total_kills_on_slash_tv %1d% 0646=1,inc_num_of_exported_cars %1d%0647=1,set_total_number_of_car_export %1d%0648=2,register_dirtbike_fastest_lap %1d% %2d%0649=2,register_dirtbike_fastest_time %1d% %2d%064A=1,dirtbike_most_air %1d% 0653=1,%1d% //dettach object?0654=2,%1d% %2d% // pad related, set rumble? 066E=1,disable_pause_menu %1d% 0671=3,set_extra_color_direction %1d% %2d% %3d%
Edited by Sergeanur
Link to comment
Share on other sites

  • 2 weeks later...

I have much better database on my HDD.

Link to comment
Share on other sites



I have much better database on my HDD.

Care to upload it?



No. I'm still working on it. Use Skype to learn more about it. Edited by fastman92
  • Like 2
Link to comment
Share on other sites

At a later point in time I will be very interested in this (provided that I succeed with porting VC and LC first)

Link to comment
Share on other sites

  • 2 weeks later...
MAJEST1C_R3

Few LCS opcodes:


Subtitles/Text:0655=3,subtitle_highpriority %1g% %2d% %3d% //Game draw GXT line only if 'Subtitles' set to 'On'0657=3,subtitle_highpriority_ignore_option %1g% %2d% %3d% //Game draw GXT line independently of 'Subtitles' option0658=4,subtitle_1number_highpriority_ignore_option %1g% %2d% %3d% %4d% //Game draw 1 numbered GXT line independently of 'Subtitles' option0664=4,set_counter_with_text %1d% %2d% %3d% %4g% // Example: 'Lap 1/3'Other:004C=1,jump_if_skip_button_pressed %1p% //Immediately jumps to specified label if you press 'Skip' button. Used in few cutscenes.
Edited by MAJEST1C_R3
  • Like 3
Link to comment
Share on other sites




// Vehicle Properties
01F1=2,set_car %1d% very_heavy %2d% // Vehicle will have much more mass; property saves in garage
03F2=2,set_car %1d% tip_proof %2d% // Car will not explode if flipped upside down and player exits in time; property saves in garage



Edited by thehambone
  • Like 2
Link to comment
Share on other sites

If possible, provide additional information in comments as majestic_r3 did.

  • Like 2
Link to comment
Share on other sites

  • 4 years later...

Sanny Builder v3.5 uses the following opcode definitions:



for LCS: https://gtamods.com/wiki/Sanny_Builder/LCSSCM.INI

for VCS: https://gtamods.com/wiki/Sanny_Builder/VCSSCM.INI



Please contribute any fixes and findings there so I can keep Sanny updated.





P.S. @spaceeinstein thank you for all you've done, I still hope to see you active again.



  • Like 2
Link to comment
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
  • 1 User Currently Viewing
    0 members, 0 Anonymous, 1 Guest

×
×
  • Create New...

Important Information

By using GTAForums.com, you agree to our Terms of Use and Privacy Policy.
