[Gmax]Converting cars to SA

Recommended Posts

plunk89

Hi ALL!



I want to indroduce this tutorial which is a good one... (I think )

I use Gmax which is a free programme and I want to show it for you. It is simple and the "young brother" of 3DSMax. (because it hasn't got as many features) I converted GTA3 Mafia Sentinel to San Andreas by the help of these tools:

-Gmax 1.2

-Kam's Gmax script

-TXDWorkshop

-IMGTool2



You can download the DOC version of the tutorial HERE.



There are some packed stuff for the tutorial which you can download HERE. In this pack I put a Readme file where I defined everything which is the zip.

Enjoy!



Tutorial on:

“How to convert cars to San Andreas with Gmax”

These are the tools required:

Gmax1.2 - Official site: http://www.turbosquid.com/

KAM’s Gmax script

TXDWorkshop

IMGTool2



To make it easier to download I packed everything but gmax’s setup file. Also there is a



Readme file how and where to extract the files...

You can download the ZIP HERE

The Gmax setup from THIS site.

(If any of these links doesn’t work Google is your friend!!)

(A small problem during the tutorial- NOTE at the end of this message!)



!!!THESE PROGRAMS ARE FREE, BUT THE GMAX WILL NEED A CODE WICH IS GENERATED MONTHLY ON THE



GIVEN SITE. I UPLOADED MINE BUT IT WORKS ONLY FOR 30 DAYS, SO TO SOLVE THIS YOU CAN REGISTER



FREE ON THE SITE AND GET A CODE OR JUST PM ME ON THE GTAFORUMS.COM!!!



!!!!GMAX REGISTRATION CODE HERE!!!!



It isn’t so hard but it takes some time to do it.

Start the IMGtool and open the gta3.img file located in the models folder and choose a car.



(I used the Mafia Sentinel from GTA3) Export its DFF and TXD file in a prepared folder.

Now open TXDworkshop and select “Open txd” and select your file. Click “Export” and “Export



all textures to tga images”. Here select the folder where you want to do all the work. (I



suggest a separate folder from the dff and txd files...)

1ST PIC



Start Gmax (and enter the serial number if u haven’t done it yet).

And click the Tools menu which is marked with a small hammer like



this:2ND PIC



And click DFF I/O and a new menu will pop up. There click the “import dff” button and select



your DFF.

3RD PIC



Now it’ll import you car into Gmax. The model is a bit far so we have to “Zoom extends all”



with this button in the right down



corner:user posted image I suggest a saving



here to that folder where you exported the TGA files! Everything is fine but the textures



aren’t shown in the model and there are some differences in the GTA3 and SA cars’ hierarchy



and the script changes the name of some meshes. All we have to do is to correct these



problems… I suggest frequent saving here!!!

First we make the textures visible by the help of the Material Navigator which is located on



the top right corner of Gmax marked with this icon:



user posted image

And a new window will pop up. There you should check the “Applied” radio button and many



small spheres would be shown which shows the material applied on this sphere.

4TH PIC



There are small blue dots before the spheres which means that the material isn’t visible.



Click double on the first “sphere” and the “material editor” will pop up.

5TH PIC



There you should click to the first sub-material. The material editor will switch to this



sub-material. There you should click this



button:user posted image Now the texture will



show on that part which has this material. We have to do this with all the sub-materials



until all the blue-white box is pressed. We can easily shift to the next sub material by



this button:user posted image

If you finished with this Material switch back to the material navigator and you will se



that the blue dot now red. Click to the next material and do this operation until all the



sub-materials have red dots…

6TH PIC



The end of this process should look similar to this:

7TH PIC



Now we have to remove the unnecessary dummies and rename that parts. If you worked with a



different car I show you a default SA hierarchy:

HIERARCHY



You can edit the names by pressing H and tick “Display sub tree” and select all objects



which contains “_hi” in their name and press Select.

8TH PIC



Now in the viewport where the model is click with right mouse button and click “Hide



unselected”

9TH PIC



NOTE: If you have characters something like wingdings in this menu you can correct it by



going to the “Customize” menu and select “Customize User Interface”. There select Quads and



click advanced options.

10TH PIC



A new window will pop up there switch the font styles from Arial Bold to Arial. That should



do the trick…

11TH PIC





If you have done the hiding of the unselected objects you can see only that parts which have



_hi tag in their name. Click on one of them and correct its name in here by deleting the _hi



part.

12TH PIC

Result:

13TH PIC



Do this with all these objects EXCEPT the “wing_rf_ok” and “wing_lf_ok” meshes because the



SA doesn’t use these. Later we will Attach it to the chassis!



If you finished this boring work you can delete the wing_rf_dam and wing_lf_dam because SA



doesn’t use these too. Now we’ll Attach the fenders to the chassis. Click on the chassis and



select Modify menu marked with this icon:



user posted image

Here you can see many options. Find the Attach List button and click on it. In the new



window select wing_lf_ok and wing_rf_ok.

14TH PIC



Click Attach and in the new menu leave everything alone and click OK.

Attach



Now the fender is added to the chassis. Now we have to unhide all the objects by right click



in the viewport and select Unhide all. Now we have to delete some objects. I show you a



picture where all the deleted parts are marked:

15TH PIC



We almost finished with the 3D model but we need wheels… Don’t worry you don’t have to make



it because I packed one for you and you only have to do the Merging. With this we can merge



2 different gmax files. Just click on File and select “Merge…” and select the wheel.gmax



file where you unzipped that and in the new window select the “wheel” and click ok. After



this another dialogue box appears because there are two same named materials. I suggest you



clicking on Auto-rename material.

16TH PIC



Now the wheel is in the scene but not on the right place and not linked to the



wheel_rf_dummy. First we select the wheel and align it to the dummy by pressing the align



icon:user posted image

Now press “H” key and select wheel_rf_dummy and click Pick. In the new window do the same as



in this picture:

17TH PIC



Now the wheel is in place:

18TH PIC



Now we have to link it to the dummy. Select the wheel and press the link



button:user posted image Next to the



Undo/Redo button. Press “H” key and select wheel wheel_rf_dummy and click Link and the click



on the “Select object



button”:user posted image You can see that



the wheel is under the dummy:

19TH PIC





If you have hidden some objects right click in the viewport and select Unhide all. Now we



are ready to EXPORT!!! Go to the gmax/scripts/GTA_Tools/ folder and start GTAMax.exe

user posted image

A small icon will display on the right corner of the tray.

20TH PIC



Now go back to gmax and select all the objects by pressing h key and select all of them…

In the tools menu (user posted image )



click DFF I/O and click THIS BUTTON



under the export part and select my packed sultan.dff file and then click Export. Here set



the name of the car which you want to replace. I replaced “sentinel” because they are



similar. So type sentinel in the saving location and click save.

21ST PIC



Now Gmax will for some mins dependant on your computer and then gtamax.exe will create the



dff file. After it finished save your work and exit gmax.

The dff file is OK but we have to convert the txd to the SA’s format. Open TXDWorkshop and



open Mafia.txd

And in the corner which shows GTA3 select SA.

22ND PIC



And in the Image menu select Compress All images.

23RD PIC



Now the txd file is in the correct SA format. In file menu select save as and type



“sentinel”.

Now everything is OK we just have to add these files to the SA/models/gta3.img file by the



help of the IMGTool2.

Now open this program and select the gta3.img in the previous folder.

24TH PIC



By pressing F2 you can find by name. Type sentinel and it will jump to the sentinel.dff and



rename it by pressing F4 (something like sentinel_old.dff) Now press F3 now it will jump to



the next sentinel file which is its txd. Rename it also! We have to rename these because we



don’t want to loose the original file.

25TH PIC



Now click Commands and add. First select the sentinel.dff file and again click add and



select the txd file. The program will add them to the end of its list (if it is sort by



Offset). Now we are ready so close everything and test it in the game!



I hope you like this tutorial! If you want some modification on the model try some Gmax or



3DsMax tutorials. Sorry for my English…



PM me on GtaForums if you have some question.



NOTE:

I had something like a bug during the makin of the tutorial. I couldn’t make visible the



“white64.tga” in the materials and once “white128.tga” because Gmax shut down... So I



suggest frequent saving and leaving these images alone during this process! And this process



not so necessary so the reason why i put in this tutorial is that to make it easier to



modify the model in the future converting....



Please tell me how did you like this tutorial!!



plunk89[/color]

Edited by plunk89

Share this post


Link to post
Share on other sites
jp245

lol i forgot how to convert the cars and now i thought i had to learn a gain so i tried this but now wen i try nto export as dff it says more than one heireci seletcted u can only seletect one

Share this post


Link to post
Share on other sites
plunk89

Is the wheel properly linked tot the wheel_rf_dummy?



You can chech it by pressing H key and tick the display subtree. If there is something in the same level as the main dummy correct it by linking... Or just send here the picture of your hierarchy.



plunk89

Share this post


Link to post
Share on other sites
jp245

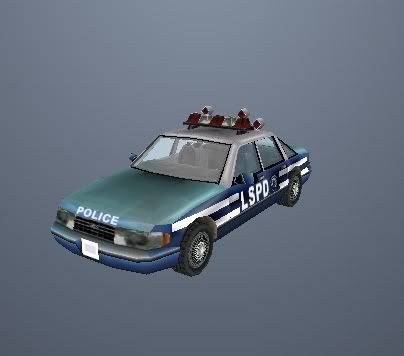

man i converted this car and it shows up in ggmm but not ingame i tried carspawning it and dosent work wat i do wrong





user posted image

Edited by jp245

Share this post


Link to post
Share on other sites
l3mmy

Try the Car without a Modified .txd, It sometimes Tends to be that, if it works, add one at a Time and you can see which one is Going Wrong (If you do get one thats Wrong make Sure it's Compressed colgate.gif)

Share this post


Link to post
Share on other sites
jp245

the car dosent have a modified txd it just is like that it has working sa lights and uses the lspd from the vehicle.txd but dont worry it works now

------------------------------------------------------------------edit

i need the original gtasa police car files i cant find my backups

Edited by jp245

Share this post


Link to post
Share on other sites
jp245

hey sry for duble post but i forgot how to map interiors and map tailights and headlights can u put a tutorial on here tat taches you how to do tat i forgot and my friend needs a conversion



edit-----------------------------------------------------------------------------

how come sometimes when i try to export aftaer it about to make file it says '=' not valid integer

Edited by jp245

Share this post


Link to post
Share on other sites
plunk89
how come sometimes when i try to export aftaer it about to make file it says '=' not valid integer

I don't know what is that exactly.... I had this problem with my Idaho too. Some part of the car is wrong (don't know why for me it can't let the trunk to be exported) or corrupted or something...

Try exporting some parts (first chassis then windshield then bumpers etc.)

When you get this message you have to remake that part or reimport or remap it...



I hope i helped you....



plunk89

Share this post


Link to post
Share on other sites
w³bster

I don't understand one thing: Below your usual tools menu you have Kam's GTA Script, but I don't have that, but I do have the map GTA_Tools in my scripts folder.

Share this post


Link to post
Share on other sites
jp245

so can u post a tutorial on how to put sa lights, grunge and interior on models



Share this post


Link to post
Share on other sites
plunk89



I don't understand one thing: Below your usual tools menu you have Kam's GTA Script, but I don't have that, but I do have the map GTA_Tools in my scripts folder.

For me it worked without a problem. Try "Run script" in the MAXscript menu and select DFF I/O script...



@jp245

sorry i can't do this grunge stuff with gmax and even 3dsmax... (also the patch1.01 doesn't work 4 me so i think it's useless...)

You can make SA light easily... Just export the vehicle_light texture from vehicles.txd. Detach the lights and name it differently (front left, back right...) With material editor add a new GTA Material and select vehicle_light tga (different maps for the different lights!!!) In the different maps select the different GTAColors correctly(front left light etc...). Attach the lights back to the chassis. Export->TEST.

Interior similar (new map create texture)tc. but you MUSTN'T set the color either primar or secondary just set "none"... (because the interior will have the same color as the chassis, if you'd like to change the color of the interior just set the color Secondary)



plunk89

Edited by plunk89

Share this post


Link to post
Share on other sites
jp245

i dont get what you mean for the lights

Share this post


Link to post
Share on other sites
jp245

sry for duble post but something is wrong with my gmax it dont show my main toolbar very well

----------------------------edit

i fixed the tool bar thing and how do you put 3d engines into cars man

Edited by jp245

Share this post


Link to post
Share on other sites
plunk89

Open an existing SA car (I used Club) select the engine->Detach it and Merge with the GTA3 file-> attach to the chassis.... (you should create the iterior of the fenders...) Get the requested TGA files from club.txd or vehicles.txd to your own txd.

------------------------------



Next week I'll post you that Idaho BETA version...(because i have that not valid integer thing... suicidal.gif )

plunk89

Share this post


Link to post
Share on other sites
jp245

can you post pics on how to detach engine and make the interior renders

Share this post


Link to post
Share on other sites
plunk89
can you post pics on how to detach engine and make the interior renders

Just import my Idaho and you can see that it is simple...

(Detach: select the requested poligons [poligon selection button] and then click Detach button and give it a name...)

Share this post


Link to post
Share on other sites
2oMicko7

Yes thanks for giving me that Gmax link i can finally play my game ''bus driver'' bye biggrin.gif [

Share this post


Link to post
Share on other sites
RaifalM3n

nice tutorial mate really wanted to know how to make SA lights' but i was unsure how






Edited by R1fl3m4n

Share this post


Link to post
Share on other sites
Ryder35

You have to detach your headlight or taillight then map it and you have some color diffuse code :

look here there is english ver.

if you have any problems reply wink.gif .

Share this post


Link to post
Share on other sites
RaifalM3n

this is strange..i found that the right color is in fact the left colour...i mean this is how they show up in 3dmax confused.gif in the Material Editor



i see that all of the lights are using the same color patern like the chassis :| how exactly do i make the detached light to use the new color ? im using 3dmax8



and if im using the old one and i select a new color all of them are using it :|

Edited by R1fl3m4n

Share this post


Link to post
Share on other sites
faded_bro4life

when i go to export, it says hierarchy error - more than one hierarchy error were selected

Share this post


Link to post
Share on other sites
plunk89
when i go to export, it says hierarchy error - more than one hierarchy error were selected

Hi there!



It is because you didn't select all the parts of the car.

user posted image



In this picture you can see that all parts are linked to the main dummy. If you want to select 1 hierarchy just tick the "Select subtree" and the "Display subtree" box and click on the main dummy then export. If there is any part that isn't linked to this main dummy link it there! In THIS picture you can see the correct SA hierarchy.



plunk89

Share this post


Link to post
Share on other sites
jp245

i think i know how to add grunge to cars now but i cant place it correctly hmmmm i keep trying and how do you add a xvehicle reflection and how do you make a car you converted paint jobs compatible but mostly reflections

Edited by jp245

Share this post


Link to post
Share on other sites
gtaGecko

Hi there, I tried you tutorial, which i found i convincing, but when i do the same procedure, when i click on the blue icon to the sub-materials with blue spheres, when i do this, after doing several, it closes atomatically. I couldnot complete making all blue spheres to red!!

Share this post


Link to post
Share on other sites
jp245

gtaGecko you dont really need to put all spheres red i figured that out one day when i forgot to do that and the car still worked in sa

Share this post


Link to post
Share on other sites
plunk89
When I export my vehicle, it goes side down. Why?



Before. Textures are messed up.

http://img73.imageshack.us/my.php?image=pvml3.png





After Export:

http://img527.imageshack.us/my.php?image=pv2uw8.png

I don't know what is the problem with it. Maybe the objects pivot doesn't aligned to the world's pivot... Or the main dummy (head of the hiearchy) isn't created in the TOP viewport!!



Does it works ingame?



plunk89

Share this post


Link to post
Share on other sites
OXYMORON29

Will this tutorial work for converting cars from games like NFS, or any game for that matter? I am seeing a lot of cars lately from NFS. Thanks.

Edited by OXYMORON29

Share this post


Link to post
Share on other sites
plunk89
Will this tutorial work for converting cars from games like NFS, or any game for that matter? I am seeing a lot of cars lately from NFS. Thanks.

Hi!



Actually it works but you must do some other operations on your car, like rename parts door_lf (etc.) make a damaged one and retexture them with GTA Material. You will need such tools as Unwrap UVV, Attach-Detach, create dummy and linking. At first you should do the tutorial and then try convertin a VC car to SA. Converting from other games are a bit harder.



P.S.(This forums doesn't support converting cars from other games like NFS)



plunk89

Share this post


Link to post
Share on other sites
jp245

hey plunk long time no see i use 3ds max 7 now and i kow how to add grunge map lights map interiors add sa engine and add sa style reflections

Share this post


Link to post
Share on other sites

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.
Note: Your post will require moderator approval before it will be visible.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.


  • 1 User Currently Viewing
    0 members, 0 Anonymous, 1 Guest

×
×
  • Create New...

Important Information

By using GTAForums.com, you agree to our Terms of Use and Privacy Policy.
