Posted 16 April 2014 - 09:37 AM

I really should have started this thread 6 months ago when I first bought my beetle, but now that the serious work has started on it I figured it would be fun to show you guys what Im doing.

Basically the story is I bought this car online from another state without ever seeing it in person. It was cheap, but there was a reason. several of them really. It had been unregistered for a long while, there were a few major rust problems, the interior was falling to pieces and there were holes in the heater exchanges so when you turned the fan on it actually blew exhaust into the cabin straight in your face. Also the tires were totally bald.

Anyway since I bought it last year Ive been slowly do my best to bring it back to life. Im going to keep uploading pictures in this thread as progress is made, Its annoying I havent kept a real history of what Ive done to the car so this thread should help.

Heres a list of few of the major things Ive done so far.
-Replaced the heater exchanges and silencer
-Twice sent it off for panel beating
-Replaced the snapped vw golf steering wheel with a repro
-Replaced the ruined running boards
-Replaced the right and door
-Replaced all the seatbelts
-Replaced the front tires
-Replaced the sh*tty side mirrors that were from bunnings or somewhere and just drilled into the doors.
-Chopped the headrests off as I convert them to lowbacks
-Completely Sanded off 3 panels, 5 remaining + the chassis.
-Rebuilt the seats completely replacing half the broken springs and welding broken joints.
and much more, I just cant remember it all right now.


Heres a few pictures in sort of a timeline, the last one I took today.

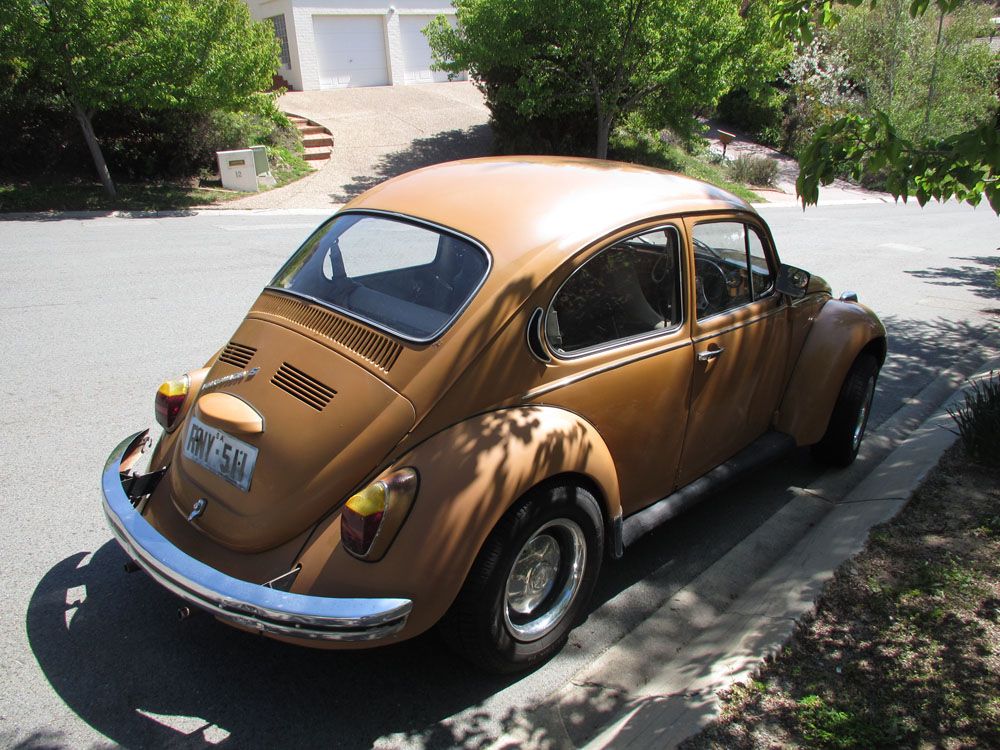

This is the car as it was the day it arrived

Off at the panel beaters getting its first round of rust fixing

The seats disassembled before I cut the head rests off to make low back seats

First incarnation of my dust mask

The floor pan after I sanded off all the rust, welded up a couple spots and repainted it in rust proof paint

The disassembling begins!

Bare metaling the first panel

Dust mask second incarnation





Tools starting to pile up

So today I hooked up my sandblaster for the first time and cleaned up the rest of a panel, holy sh*t does that thing burn through the steel grit fast. Im going to set up a plastic tarp next time so I can catch it and reuse it. I also started welding up a few holes that I found under the rear fender when I took it off, the results are below.



So that its for now! more pics will come as more gets done. I found a '67 online for sale aswell that Im thinking of buying so this could be a long thread indeed.
  • Outcast, epoxi, *MURDOC* and 9 others like this

*MURDOC*
  • *MURDOC*

    Permanent headache.

  • Members
  • Joined: 15 Dec 2004
  • None

#2

Posted 16 April 2014 - 09:41 AM

Looks great, props for giving this thing a second chance!


Kiffster
  • Kiffster

  • Zaibatsu
  • Joined: 27 Mar 2013
  • South-Africa

#3

Posted 16 April 2014 - 12:04 PM

Always loved the classic bug! :^:

SouthLand
  • SouthLand

    CE SABADELL FC

  • Members
  • Joined: 15 Nov 2013
  • Spain

#4

Posted 16 April 2014 - 01:19 PM

I wished i had Time, Money and a place to do this...



Nice bug friend.


epoxi
  • epoxi

    Your Mother

  • Andolini Mafia Family
  • Joined: 05 Sep 2003
  • None
  • Best Poster [Vehicles] 2014

#5

Posted 16 April 2014 - 05:54 PM

Looks like a promising start.

The VW Beetle is one of the few mass produced cars you can actually make a profit on by restoring, at least in the UK.

unopieceo
  • unopieceo

    Turdler Durpden

  • $outh $ide Hoodz
  • Joined: 21 Jun 2005
  • None
  • Contribution Award [Mods]
    Best Vehicle 2012 [HD GTA Cars]

#6

Posted 17 April 2014 - 12:07 AM Edited by Thunderfuckrapist, 18 April 2014 - 02:20 AM.

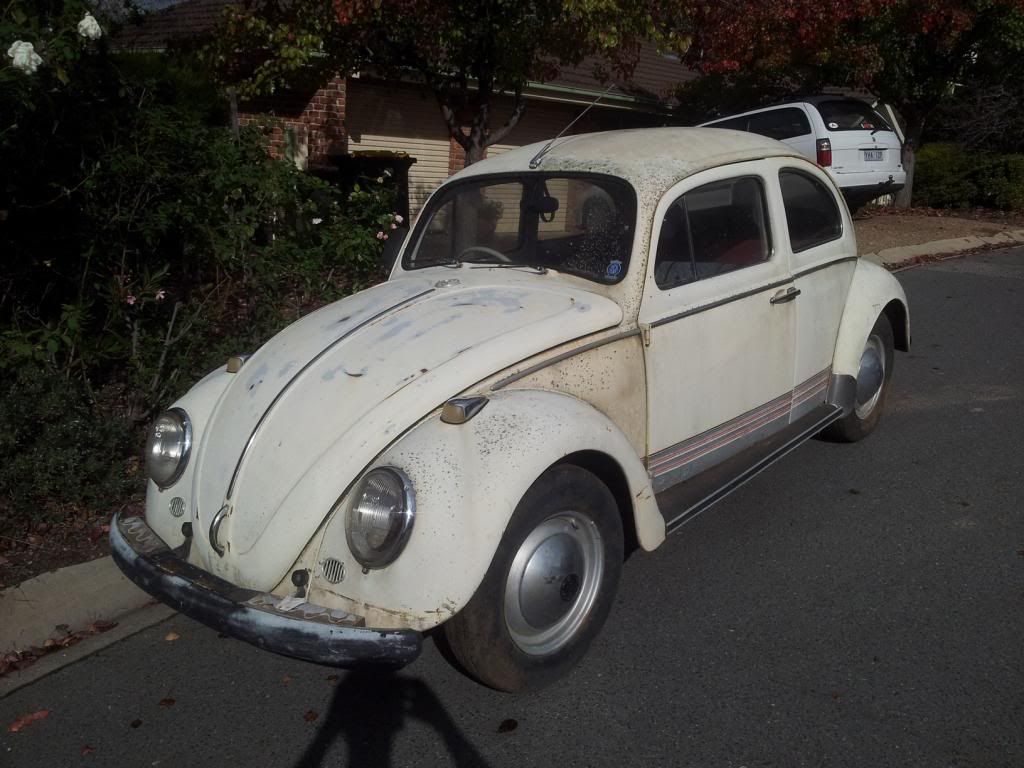

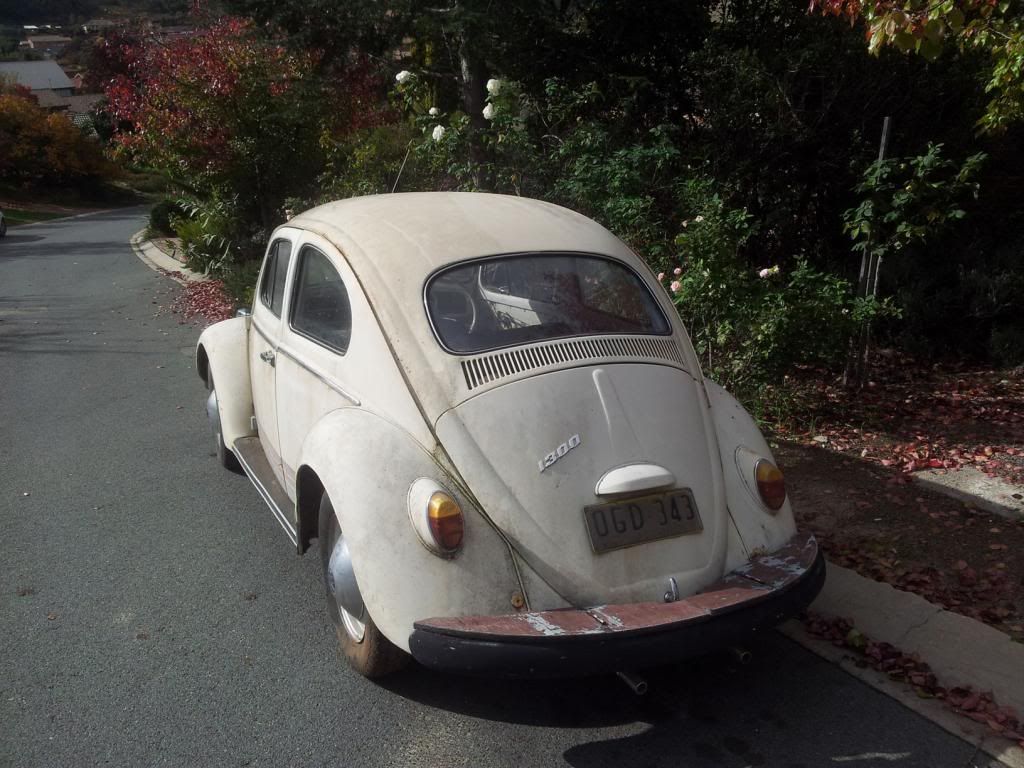

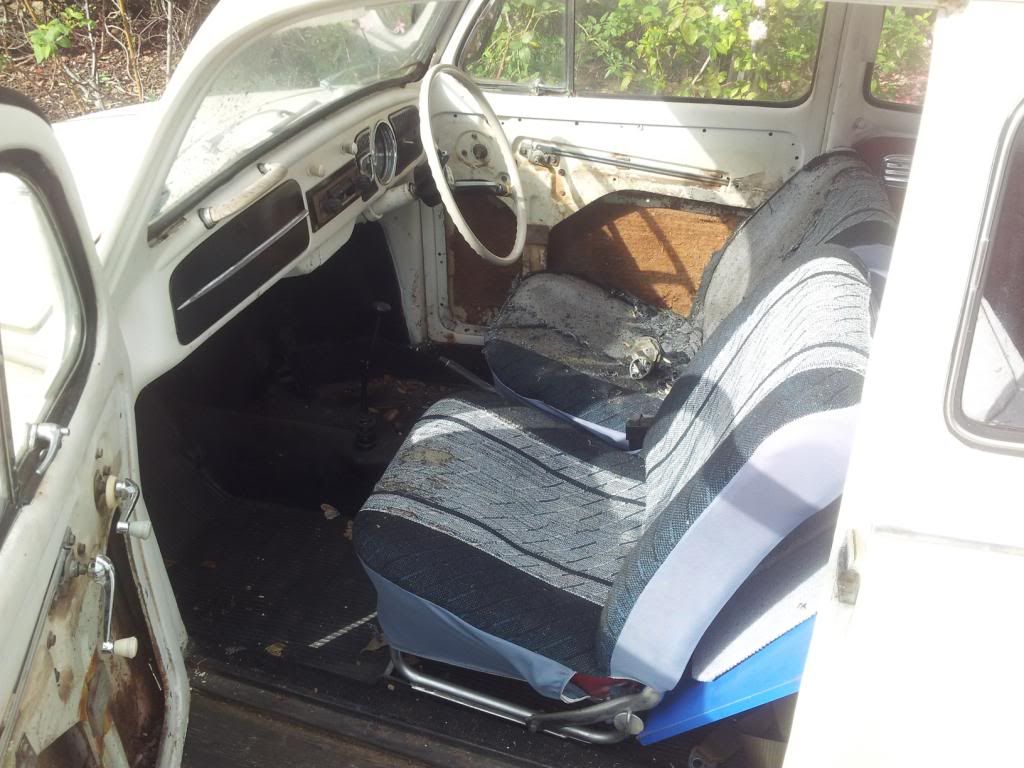

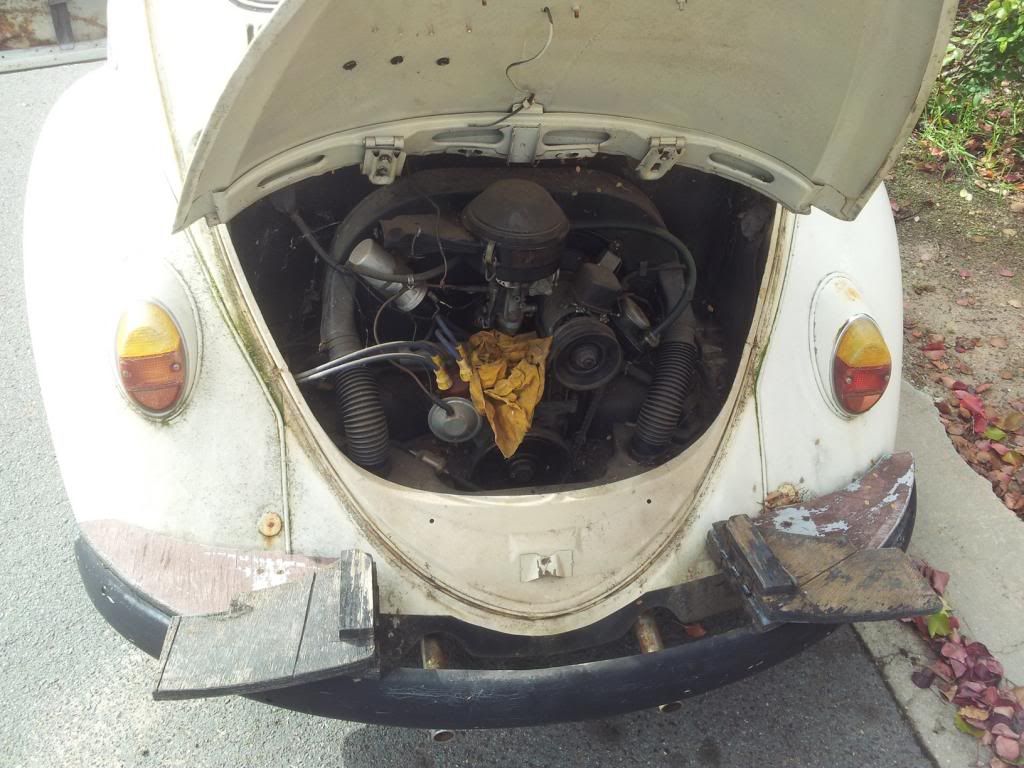

Beetle No.2 Im going to have a look at tomorrow






If I do end up buying it Im going to have to go into overdrive on this current one to get it on the road ASAP. Thankfully this one looks a lot less molested than the '71 was so there wont be as much work to do





EDIT: Its mine! More pics when it arrives on tuesday

  • *MURDOC* and Marwin like this

unopieceo
  • unopieceo

    Turdler Durpden

  • $outh $ide Hoodz
  • Joined: 21 Jun 2005
  • None
  • Contribution Award [Mods]
    Best Vehicle 2012 [HD GTA Cars]

#7

Posted 24 April 2014 - 06:55 AM Edited by Thunderfuckrapist, 24 April 2014 - 06:57 AM.

Update!

Work on the Superbug is going well, Ive finished off sanding on the last wheel arch and am ready to move onto the hood sometime this week







Dust mask 3rd incarnation

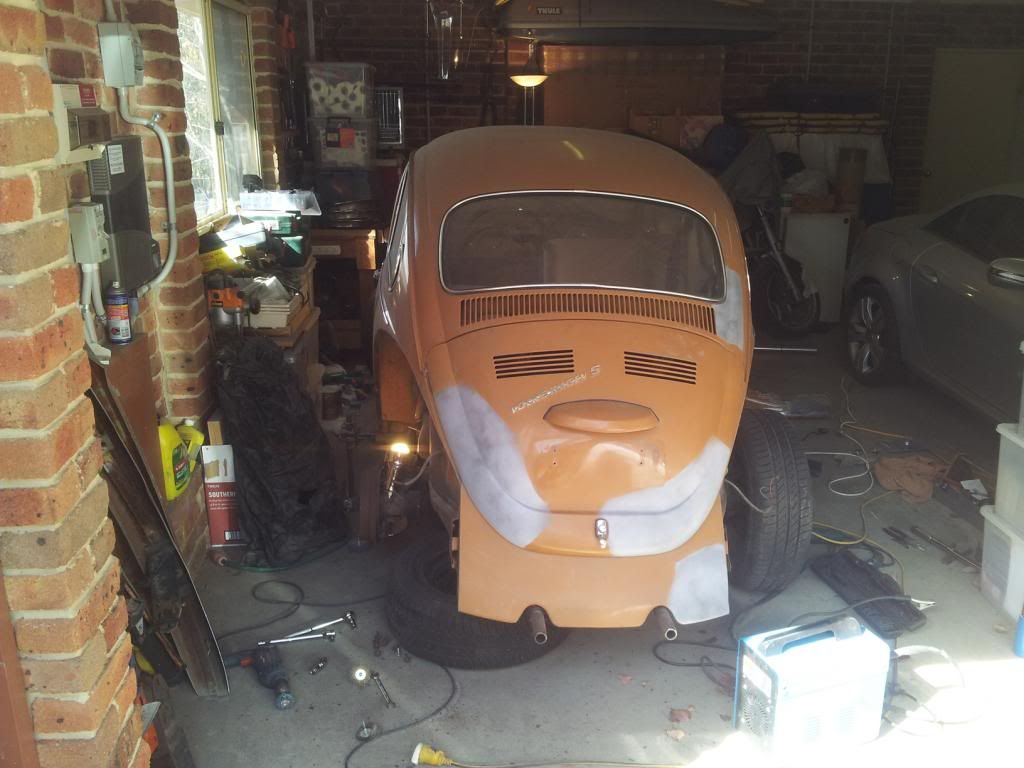

And now onto the exciting news! yesterday morning around 1 oclock my very own '67 beetle arrived on the back of a truck! I took these pics straight away, later in the day i started pulling all the sh*t out of it, there were these weird wooden panels all over the car, and strange carpeting placed all over the interior
